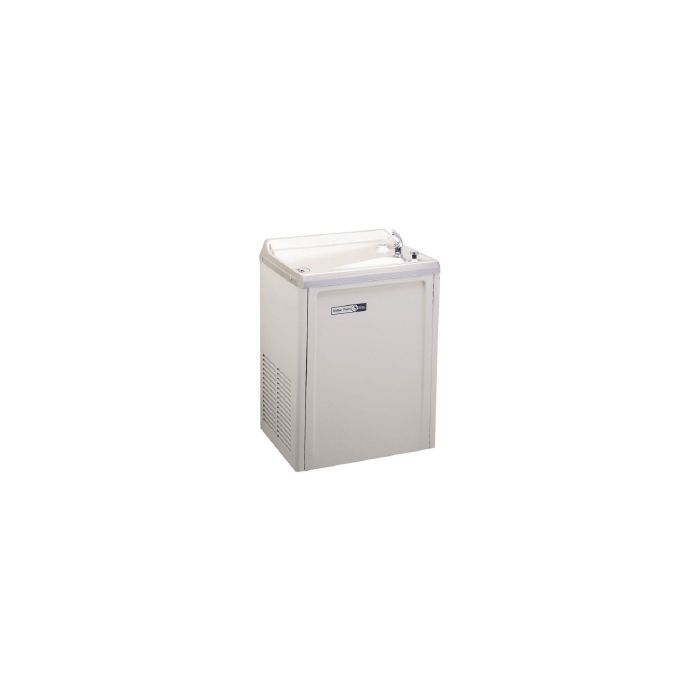

Halsey Taylor SW8A-PV Drinking Fountain

h3. Cabinet Heavy-gauge vinyl clad steel. Resistant to wear, moisture, perspiration, heat and sunlight. Optional Stainless Steel is available. h3. Cooler Top Non-corrosive stainless steel cooler top, number 300 series with satin finish resists stains and corrosion and is easy to maintain. Anti-splash ridge reduces splatter. Contoured to insure proper drainage. h3. Bubbler Exclusive one-piece, chrome-plated two-stream mound-building bubbler with non-removable anti-squirt feature and integral hood insures a satisfying drink of water. h3. Push Bar Actuation Mechanism Self closing, vandal-resistant push-button does not require grasping or twisting. h3. Automatic Stream Height Regulator Self-closing assembly is located inside unit to prevent tampering. Unit resists corrosion and liming. A constant stream height is automatically maintained under line pressures that vary from 20 to 105 psi. h3. Inlet Strainer Easily cleaned in-line strainer screen traps particles of 140 microns or larger before they enter the waterway. h3. Temperature Control Positive sensing thermostat for controlling temperature of storage tank water. Factory set at 50° F Adjustable ± 5° F. h3. Storage Tank Non-pressurized stainless steel evaporator/storage tank for long life. Waterways are certified to NSF/ANSI 61, far exceeding the requirements of the Safe Drinking Water Act. h3. Refrigeration System Hermetically sealed, positive start compressor with lifetime lubrication and built-in overload protection, efficient capillary sizing, large capacity dryer-strainer, and fan cooled copper/aluminum condenser with self-lubricated bearing. System uses R134A refrigerant. Protected by Halsey Taylor's Limited 5 Year Warranty. h3. Ventilation Insure proper ventilation by maintaining 6" (152mm) minimum clearance from cabinet louvers to wall. h3. Suggested Specifications Shall deliver ( ) GPH of 50° F water at 90° F ambient and 80° F inlet water. Shall have stainless steel basin with removable drain strainer. Bubbler shall be two-stream, mound-building type. Separate valve and automatic stream regulator shall be mounted within cabinet. Refrigeration system shall employ high efficiency, positive start compressor using R134A non-pressurized tank with totally encapsulated insulation and be controlled by positive sensing thermostat. The manufacturer shall certify the Halsey Taylor SW8A-Q to meet the requirements of NSF/ANSI 61, and the Safe Drinking Water Act. Unit complies with ARI Standard 1010.
