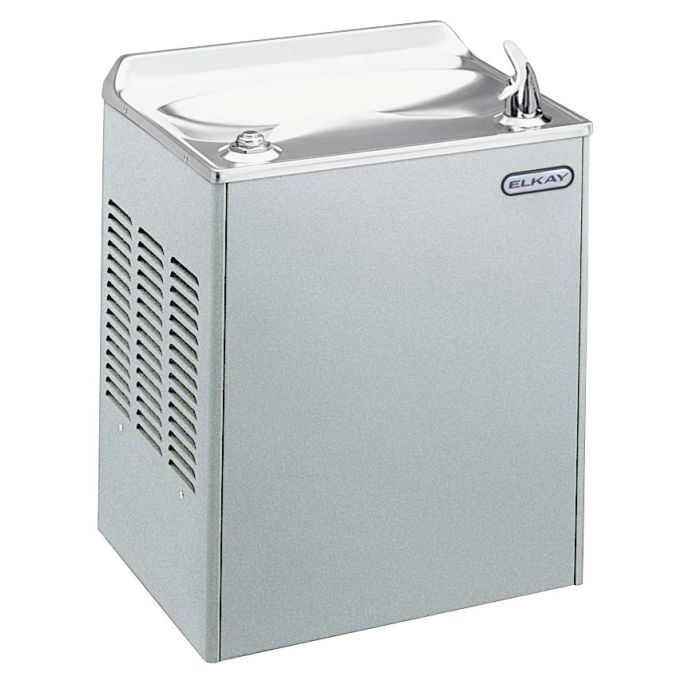

Elkay EWCA8L1Z Drinking Fountain

h3. Elkay EWCA8 No Lead Design The Elkay EWCA8 water cooler complies with the lead-free definition in the Safe Drinking Water Act of 1986 and Lead Contamination Control Act of 1988. Elkay EWCA8 Water Coolers are manufactured with a waterway system utilizing copper components and completely lead-free materials. These waterways have no lead because all lead materials, such as leaded brass, have been removed. All joints are brazed using silver solder only. No lead solder is permitted. A strainer with an easily cleanable screen is provided to allow trapping and convenient removal of waterborne particulate of 140 microns and larger prior to their entry into the water cooler. h3. Cooling System * *Motor Compressor:* Hermetically sealed, 115V, 60 Hz single phase. Sealed-in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug. * *Condenser:* Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated. * *Cooling Unit:* Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam which meets Underwriters Laboratories Inc. requirements for self extinguishing material. * *Refrigerant Control:* Refrigerant HFC-134a is controlled by accurately calibrated capillary tube for positively trouble-free performance. * *Temperature Control:* Enclosed adjustable thermostat is factory pre-set. Requires no adjustment other than for altitude requirements. h3. Construction * *Fountain Top:*One piece stainless steel top, polished to a uniform Elkay bright luster finish. Exclusive Cascade basin, tested most splash-resistant, features multi-level deck design with a built-in vandal-resistant strainer. * *Exclusive Flexi-Guard® Safety Bubbler*:* Innovative design utilizes an infused anti-microbial pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact, then returns to original position. Strong. Abrasion-resistant. Anti-sweat. Keyed in location to prevent rotation. * *Removable Panel:* Removable front panel offers easy accessibility to interior. * *Color Selection:* Gray Beige vinyl furnished as standard unless alternate panel color is selected. Alternate panel colors in vinyl are: Granite, Sandalwood, and Natural Almond. Stainless Steel units available at extra cost. * *Cabinet :* Cabinet allows for flush to wall mounting. *5 YEAR LIMITED WARRANTY* on the refrigeration system of the unit. Electrical components and water system are warranted for 12 months from date of installation. Sample Certificate available on request. Elkay Pressure-Type Water Coolers are designed to operate on 20 psi to 105 psi supply line pressure. If inlet pressure is above 105 psi, a pressure regulator must be installed in the supply line. Any damage caused by reason of connecting this product to supply line pressures lower than 20 psi or higher than 105 psi is not covered by the warranty.
