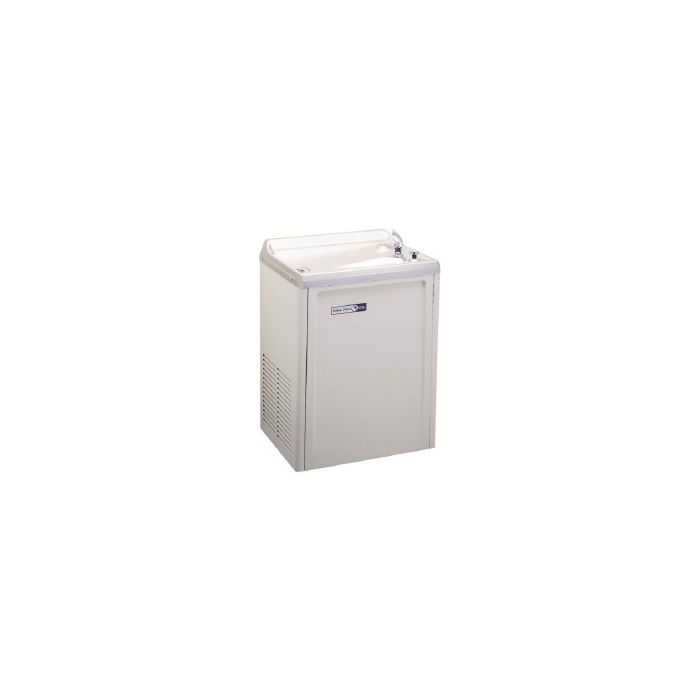

Halsey Taylor SW14A-PV Drinking Fountain

h3. Cabinet Heavy-gauge vinyl clad steel. Resistant to wear, moisture, perspiration, heat and sunlight. Optional Stainless Steel is available. h3. Cooler Top Non-corrosive stainless steel cooler top, number 300 series with satin finish resists stains and corrosion and is easy to maintain. Anti-splash ridge reduces splatter. Contoured to insure proper drainage. h3. Bubbler Exclusive one-piece, chrome-plated two-stream mound-building bubbler with non-removable anti-squirt feature and integral hood insures a satisfying drink of water. h3. Push Bar Actuation Mechanism Self closing, vandal-resistant push-button does not require grasping or twisting. h3. Automatic Stream Height Regulator Self-closing assembly is located inside unit to prevent tampering. Unit resists corrosion and liming. A constant stream height is automatically maintained under line pressures that vary from 20 to 105 psi. h3. Inlet Strainer Easily cleaned in-line strainer screen traps particles of 140 microns or larger before they enter the waterway. Positive sensing thermostat for controlling temperature of storage tank water. Factory set at 50° F Adjustable ± 5° F. h3. Temperature Control Positive sensing thermostat for controlling temperature of storage tank water. Factory set at 50° F Adjustable ± 5° F. h3. Storage Tank Non-pressurized stainless steel evaporator/storage tank for long life. Waterways are certified to NSF/ANSI 61, far exceeding the requirements of the Safe Drinking Water Act. h3. Refrigeration System Hermetically sealed, positive start compressor with lifetime lubrication and built-in overload protection, efficient capillary sizing, large capacity dryer-strainer, and fan cooled copper/aluminum condenser with self-lubricated bearing. System uses R134A refrigerant. Protected by Halsey Taylor's Limited 5 Year Warranty. h3. Ventilation Insure proper ventilation by maintaining 6" (152mm) minimum clearance from cabinet louvers to wall. h3. Suggested Specifications Shall deliver ( ) GPH of 50° F water at 90° F ambient and 80° F inlet water. Shall have stainless steel basin with removable drain strainer. Bubbler shall be two-stream, mound-building type. Separate valve and automatic stream regulator shall be mounted within cabinet. Refrigeration system shall employ high efficiency, positive start compressor using R134A non-pressurized tank with totally encapsulated insulation and be controlled by positive sensing thermostat. The manufacturer shall certify the Halsey Taylor SW14A-Q to meet the requirements of NSF/ANSI 61, and the Safe Drinking Water Act. Unit complies with ARI Standard 1010.
