Z6950-XL Faucets

Overview:

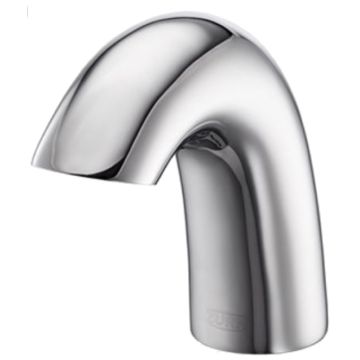

Zurn AquaSense® faucets are ideal for high-use applications where durability and hands-free operation are necessary. These faucets are ADA compliant, battery powered, polished chrome-plated cast brass sensor faucets with infrared proximity sensor for retrofit and new construction.

Product Features:

• Line PurgeMetering Mode
• Infrared convergence-type proximity sensor
• 30 second time out feature
• Standard Chrome-plated Cast Brass Body
• In-line filter
• 4 “AA” batteries
• Inlet for a 1/2” ball riser

Product Options:

• -5S = Five Second Time Out Feature
• -10S = Ten Second Time Out Feature
• -15S = Fifteen Second Time Out Feature
• -60S = Sixty Second Time Out Feature
• -ADM = Above Deck Mixer
• -CP4 = 4" Cover Plate
• -CP8 = 8" Cover Plate
• -H4 = Wrist Blade Handle for ADM
• -LP12 = Line Purge 2min/ 12hr
• -LP24 = Line Purge 2min/ 24hr
• -LP48 = Line Purge 2min/ 48hr
• -MV = Temperature Mixing Valve
• -SH = Supply Hoses for Mixing Valve
• -TMV-1 = Thermostatic Mixing Valve for Single Faucets
• -ACA = 6 Volt A/C Plug-In Adapter
• -HW6 = Hardwired Power Converter
• -LL = "10 Year Battery" - Long Life
• -CWB = Connector Wire for Plug-In Power Converter
• -MJ = Mini Junction Box

Aerator Options:

(GPM = Gallons Per Minute)

• -E = 1.5 GPM Vandal-Resistant Aerator
• -F = 0.5 GPM Vandal-Resistant Spray Aerator
• -J = 1.5 GPM Vandal-Resistant Laminar Aerator
• -K = 1.0 GPM Vandal-Resistant Laminar Aerator
• -L = 1.0 GPM Vandal-Resistant Aerator
• -M = 0.35 GPM Vandal-Resistant Spray Aerator
• -N = 0.5 GPM Vandal-Resistant Laminar Aerator
