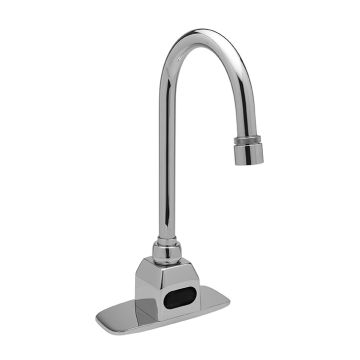

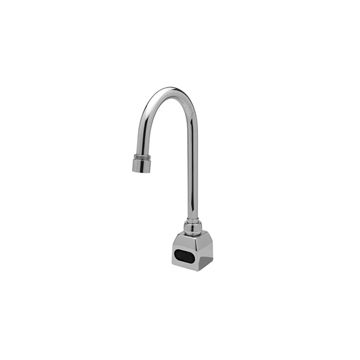

Z6920-XL Faucets

Overview:

These Zurn AquaSense® faucets are ideal for high-use applications where durability and hands-free operation are necessary. The following faucets are ADA compliant, battery powered, polished chrome-plated cast brass sensor faucet with infrared proximity sensor for retrofit and new construction. The units are furnished with a standard 1.5 GPM aerator, and mounting hardware.

Product Features:

• Infrared convergence-type proximity sensor
• 30 second time out feature
• Chrome-plated Cast Brass Body
• In-line filter
• 4 “AA” batteries
• Inlet for a 1/2” ball riser

Product Options:

• -ADM = Above Deck Mixer
• -ADM-1 = Above Deck Mixer w/4” Cover Plate
• -ADM-2 = Above Deck Mixer w/8” Cover Plate
• -CP4 = Cover Plate 4”[102] Centers
• -CP8 = Cover Plate 8”[203] Centers
• -DSA = Drug Screening Applications
• -FC = Flow Control in base of Spout
• -GA = 3-1/2” Gooseneck Spout
• -GC = 8” Gooseneck Spout
• -H4 = Wrist Blade handle for ADM
• -IA3 = Inlet Adaptor (3/8”[10] compression)
• -MV = Temperature Mixing Valve
• -SH = Supply Hoses for Mixing Valve
• -TMV-1 = Thermostatic Mixing Valve for Single Faucets
• -ACA = 6 VDC Plug-In Power Converter
• -HW6 = Hardwired Power Converter
• -CWB = Connector Wire for Plug-In Power Converter
• -MJ = Mini Junction Box

Aerator Options:

(GPM = Gallons Per Minute)

• -E = 1.5 GPM Vandal-Resistant Aerator
• -F = 0.5 GPM Vandal-Resistant Spray Aerator
• -J = 1.5 GPM Vandal-Resistant Laminar Aerator
• -K = 1.0 GPM Vandal-Resistant Laminar Aerator
• -L = 1.0 GPM Vandal-Resistant Aerator
• -M = 0.35 GPM Vandal-Resistant Spray Aerator
• -N = 0.5 GPM Vandal-Resistant Laminar Aerator
