Z6913-XL Faucets

Overview:

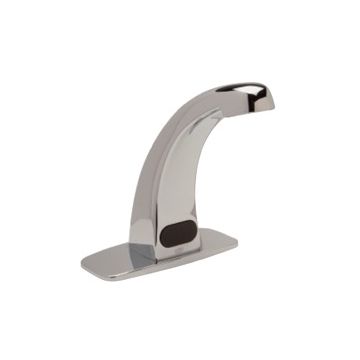

The Z6913-XL AquaSense sensor faucet is a battery powered sensor faucet for retrofit and new construction. This faucet incorporates an infrared convergence-type proximity sensor into the chrome plated cast brass spout. It’s furnished complete with sensor module, spout module, in-line filter, 4 'AA' batteries, a 1.5 GPM vandal resistant aerator and an inlet for a 1/2"[13] ball riser or supply hose.

Product Options:

• -ADM = Above Deck Mixer
• -ADM-1 = Above Deck Mixer w/4" Cover Plate
• -ADM-2 = Above Deck Mixer w/8" Cover Plate
• -CP4 = Cover Plate 4[102] Centers
• -CP8 = Cover Plate 8[203] Centers
• -H4 = Wrist Blade Handle for ADM
• -IA3 = Inlet Adaptor (3/8"[10] compression)
• -MJ = Mini Junction Box
• -MT = Mixing Tee
• -MV = Temperature Mixing Valve
• -PB = Polished Brass PVD Finish
• -SH = Supply Hoses for Mixing Valve
• -TMV = Thermostatic Mixing Valve for Multiple Faucets
• -TMV-1 = Thermostatic Mixing Valve for Single Faucets

Aerator Options:

(GPM = Gallons Per Minute)

• -F = 0.5 GPM Vandal Resistant Aerator
• -J = 1.5 GPM Vandal-Resistant Laminar Aerator
• -K = 1.0 GPM Vandal-Resistant Laminar Aerator
• -L = 1.0 GPM Vandal-Resistant Aerator
