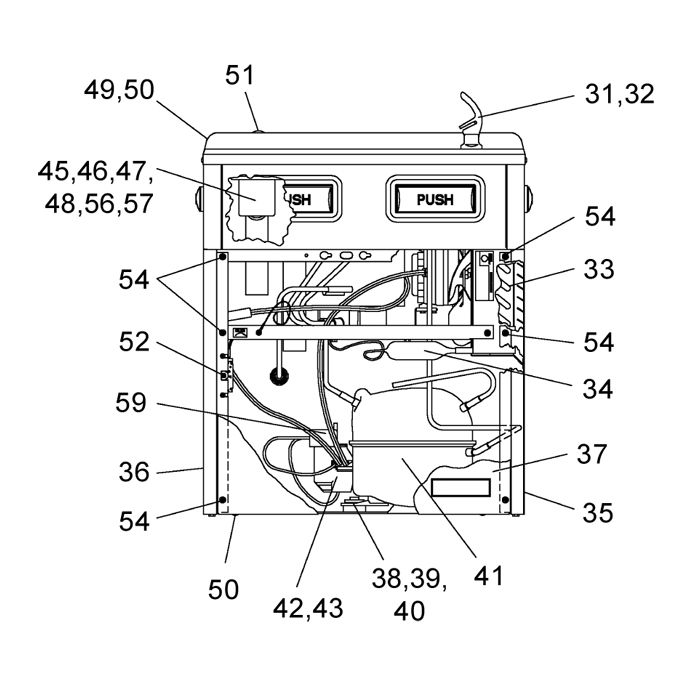

Halsey Taylor HACFS.C Parts Breakdown

Breakdown for post 1994 models: HAC4F-Q*1C, HAC4FS-Q*1C, HAC8F-Q*1C, HAC8FS-Q*1C.

In stock

SKU: breakdown-HACFS.C

How to use this page:

1. Identify the part(s) you need in the image.

2. Look for the corresponding "Item #" in the list below.

3. Add item to cart

-or-

4. Click on the item to view more details

Item #


Part Details

Price

Qty

Elkay 40-06609-43-730 Mounting Bracket

Item #: 102628

Learn More

$19.50

Elkay 22897C Bottom Cover Panel

Item #: 102749

Learn More

$38.75

Elkay 51531C Pivot Block

Item #: 102479

Learn More

$11.36

Out of stock

Elkay 11-14117-43-620 Nut 1/4"

Item #: 102542

Learn More

$4.42

Out of stock

Elkay 22901C Side Push Bar Bracket

Item #: 102465

Learn More

$15.40

Elkay 22836C Panel-RH PV

Item #: 107035

Learn More

$40.00

Elkay 22820C RH Panel(pv)

Item #: 133877

Learn More

$37.50

Elkay 22838C Panel - RH Push SS

Item #: 106661

Learn More

$40.39

Elkay 22822C Right-Hand Panel

Item #: 133431

Learn More

$40.39

Elkay 22828C Panel-LH Push PV

Item #: 134140

Learn More

$43.75

Elkay 22812C Panel-LH PV

Item #: 107036

Learn More

$38.75

Elkay 22814C Left-Hand Panel

Item #: 133432

Learn More

$45.00

Elkay 22830C Left Hand Stainless Steel Pushbutton Panel

Item #: 106662

Learn More

$43.20

Elkay 22804C Front Panel Platinum Vinyl

Item #: 102750

Learn More

$49.50

Elkay 22806C Front Panel SS

Item #: 102871

Learn More

$62.10

Halsey Taylor 55859C Push Bar Adapter

Item #: 102543

Learn More

$11.48

Elkay 55947C Grey Push Button

Item #: 102729

Learn More

$14.57

Out of stock

Elkay 22900C Front Push Bar Bracket

Item #: 102464

Learn More

$21.00

Elkay 70864C Torx Head Screw

Item #: 102501

Learn More

$2.75

Elkay 50212C Pivot Block Pin

Item #: 102477

Learn More

$7.56

Out of stock

Elkay 51667C Bumper, Press Bar

Item #: 102819

Learn More

$8.52

Elkay 40045C Hex Nut

Item #: 102472

Learn More

$28.59

Elkay 23003C Bracket, Regulator Mounting

Item #: 102808

Learn More

$15.00

Elkay 15005C Cartridge Retaining Nut

Item #: 102460

Learn More

$8.34

Out of stock

Elkay 61314C Valve Regulator Cartridge (Green Spring)

Item #: 102539

Learn More

$40.83

Elkay Cartridge Holder 50986C

Item #: 102478

Learn More

$43.75

Elkay 70935C Screw-Shoulder

Item #: 106157

Learn More

$5.50

Elkay 11-26275-43-890 Screw 10/24

Item #: 102504

Learn More

$2.75

Elkay 31517C Cord-Power 115V (Discontinued)

Item #: 129690

Learn More

$0.00

Out of stock

Elkay 30699C Fan Blade

Item #: 129536

Learn More

$23.15

Out of stock

Elkay 70018C Nut - Hex 1/4 - 20 (Discontinued)

Item #: 106370

Learn More

$3.83

Out of stock

Elkay 31490C Fan Motor (Discontinued)

Item #: 102518

Learn More

$0.00

Out of stock

Elkay 70009C Exp-Screw Furn w/AL Motor

Item #: 106633

Learn More

$7.22

Out of stock

Elkay 22899C Fan Shroud (Discontinued)

Item #: 135310

Learn More

$21.68

Out of stock

Elkay 38417001 Screw (Discontinued)

Item #: 107671

Learn More

$0.00

Out of stock

Elkay 75524C Panel Clip - U Type

Item #: 136660

Learn More

$4.99

Out of stock

Elkay 55996C Strainer

Item #: 102483

Learn More

$27.50

Elkay 56159C Plastic 1/4" Bubbler Nipple

Item #: 102846

Learn More

$50.40

Halsey Taylor Chrome-Plated Bubbler 51544C (Discontinued)

Item #: 102522

Learn More

$0.00

Out of stock

Elkay 0000001192 Flat Black Gasket

Item #: 102517

Learn More

$12.60

Elkay 62152C Condenser (Discontinued)

Item #: 107630

Learn More

$0.00

Out of stock

Elkay 66743C Condenser (Discontinued)

Item #: 133604

Learn More

$0.00

Out of stock

Elkay 66202C Drier

Item #: 106303

Learn More

$30.00

Elkay 22860C PANEL-RH REAR (PV) HAC

Item #: 135306

Learn More

$54.45

Elkay 22862C PANEL-RH REAR (S)

Item #: 135307

Learn More

$119.70

Elkay 22854C Left-Side High Rear Panel (SS)

Item #: 130888

Learn More

$86.50

Out of stock

Elkay 22852C PANEL-LH REAR (PV)_HAC

Item #: 135304

Learn More

$64.62

Elkay 22844C Front Lower Panel (PV)

Item #: 106218

Learn More

$40.39

Elkay 22955C Panel-Front Lower (SS)

Item #: 106426

Learn More

$85.50

Elkay 10-15161-43-550 Stud (Discontinued)

Item #: 110862

Learn More

$6.13

Out of stock

Elkay 10-08067-40-570 Grommet (Discontinued)

Item #: 110863

Learn More

$0.00

Out of stock

Elkay 19037000 Clip (Discontinued)

Item #: 110864

Learn More

$0.00

Out of stock

Elkay 35960C Compressor Serv Pak 115V

Item #: 102805

Learn More

$561.60

Elkay 31039C Compressor Overload Relay

Item #: 102672

Learn More

$42.36

Elkay 35768C Cover Relay (Discontinued)

Item #: 129695

Learn More

$0.00

Out of stock

Elkay 66532C HEATX-BARRIER FREE

Item #: 136519

Learn More

$27.56

Elkay 45351C Assy. Waste Line (Discontinued)

Item #: 107129

Learn More

$0.00

Out of stock

Elkay 100147140560 Drain Gasket

Item #: 102742

Learn More

$8.80

Elkay 10-26399-31-640 Drain Plug

Item #: 102778

Learn More

$24.75

Halsey Taylor 16-02705-08-640 Strainer Plate

Item #: 102520

Learn More

$13.48

Elkay 22893C (Discontinued)

Item #: 135309

Learn More

$0.00

Out of stock

Elkay 75532C Screw (Discontinued)

Item #: 107284

Learn More

$0.00

Out of stock

Elkay 10-06876-08-640 BUTTN-PLUG 3/4

Item #: 134660

Learn More

$11.00

Elkay 31513C Cold Control Thermostat

Item #: 102467

Learn More

$43.20

Elkay 66534C Evaporator Assembly (Discontinued)

Item #: 102777

Learn More

$0.00

Out of stock

Elkay 70002C Screw

Item #: 102509

Learn More

$4.15

Elkay 50124C BUMPR-CORK/RUBBER

Item #: 136252

Learn More

$3.83

Elkay 55884C Drain Elbow 1-1/4"

Item #: 102495

Learn More

$30.00

Out of stock

Elkay 75588C Drain Nut (Discontinued)

Item #: 102739

Learn More

$0.00

Out of stock

Elkay 55931C Bottom Plate Cover Grey

Item #: 102500

Learn More

$27.50

Elkay 35935C Run Capacitor (Discontinued)

Item #: 107077

Learn More

$0.00

Out of stock

More Information

Manufacturer	Halsey Taylor
Model #	HACFS.C
Filter Included	No
Freeze Resistant	No
Gooseneck Glass Filler	None
