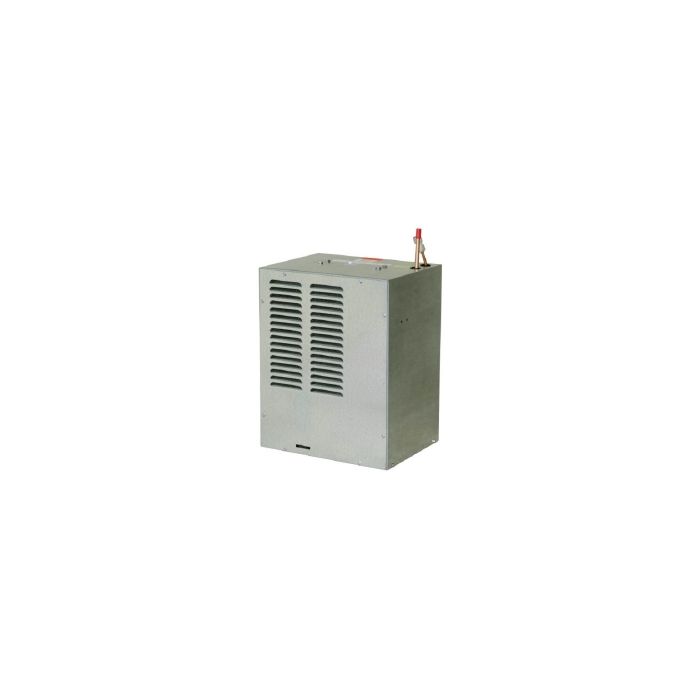

Halsey Taylor SJ8-Q Remote Chiller, 8 GPH

h3. Cabinet Manufactured of rust-resistant heavy gauge galvanized steel. Removable service panels. * *Plumbing Connections:* 1/4" O.D. inlet and outlet * *Electrical Connection:* 7/8" diameter opening for conduit connection * *Cooling Coil and Storage Tank:* Combination tube/tank type. Tube portion is a continuous coil of copper tubing. * *Fan Motor:* Unit bearing self-lubricating type for maintenance-free longer life. * *Condenser:* Copper/aluminum construction with associated shroud. * *Temperature Control:* Thermostat for cooling and storage tank is factory set for 50° F water. Adjustable ± 5° F. * *Electrical:* Furnished with 6" leads enclosed in junction box for direct connection to standard 115 volt, 60 Hz, single phase. h3. Refrigeration System Hermetically sealed, positive start compressor with lifetime lubrication and built-in overload protection, efficient capillary sizing, large capacity dryer-strainer, and self-lubricated fan cools copper/aluminum condenser. The system uses R134A refrigerant. Test pressures, high side 325 psig., low side 140 psig. Protected by Halsey Taylor's Limited 5 Year Warranty. h3. Ventilation When mounting unit in an open area, to insure proper ventilation, maintain a 4" (102mm) clearance from cabinet louvers on each side of cooler. When mounting unit in a cavity or behind a wall, maintain a minimum space of 4" (102mm) on each side, 4" (102mm) on the top and a depth of 12" (305mm). h3. Suggested Specifications Shall deliver ( ) GPH of 50°F water at 90°F ambient and 80°F inlet water. Designed for use with any drinking fountain. Compressor shall be hermetically sealed. The manufacturer shall certify unit to be lead-free as defined by the Safe Drinking Water Act. System controlled by an adjustable thermostat. Complies with ARI Standard 1010. *SJ8 can serve 2 fountains.*
