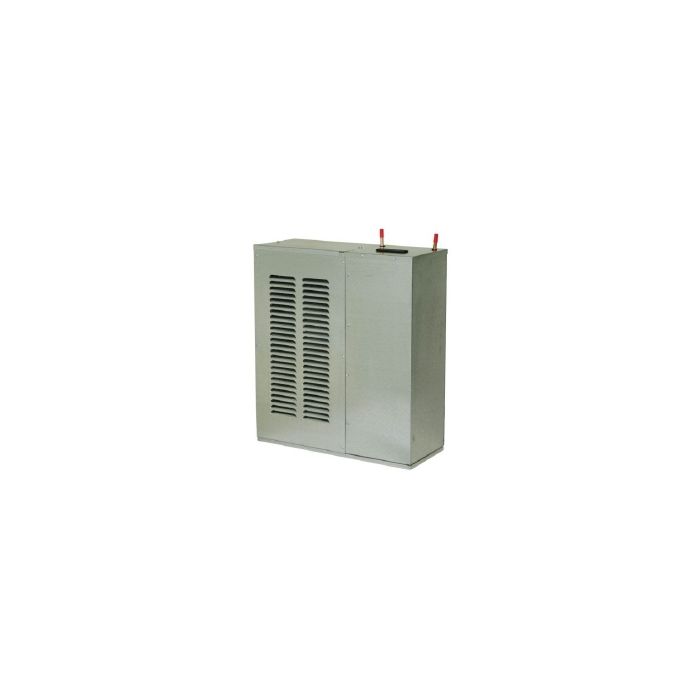

Halsey Taylor SJ5-Q Remote Chiller, 5 GPH

h3. Cabinet Manufactured of rust-resistant heavy gauge galvanized steel. Removable service panels. h3. Plumbing Connections 3/8" O.D. inlet and outlet h3. Electrical Connection 7/8" diameter opening for conduit connection h3. Cooling Coil and Storage Tank Combination tube/tank type. Tube portion is continuous coil of copper-tubing. h3. Fan Motor Unit bearing self-lubricating type for maintenance-free longer life. h3. Condenser Copper/aluminum construction with associated shroud. h3. Temperature Control Thermostat for cooling and storage tank is factory set for 50° F water. Adjustable ± 5° F. h3. Electrical Furnished with 6" leads enclosed in junction box for direct connection to standard 115 volt, 60 Hz, single phase. h3. Refrigeration System Hermetically sealed, positive start compressor with lifetime lubrication and built-in overload protection, efficient capillary sizing, large capacity dryer-strainer, and self-lubricated fan cools copper/aluminum condenser. System uses R134A refrigerant. Test pressures, highside 325 psig., lowside 140 psig. Protected by Halsey Taylor's Limited 5 Year Warranty. h3. Ventilation It is important to insure proper ventilation. Allow a minimum clearance of 6" (152mm) in front and 3" (76mm) in the rear of the unit. If unit is to be installed in an enclosure, allow the following clearances around unit: 1 inch (25mm) on each side, 3 inches (76mm) in the rear and 3 inches (76mm) inches above wall. h3. Suggested Specifications Shall deliver ( ) GPH of 50°F water at 90°F ambient and 80°F inlet water. Designed for use with any drinking fountain. Compressor shall be hermetically sealed. Manufacturer shall certify unit to be lead free as defined by the Safe Drinking Water Act. System controlled by adjustable thermostat. Complies with ARI Standard 1010. *SJ5 can serve 1 fountain.*
