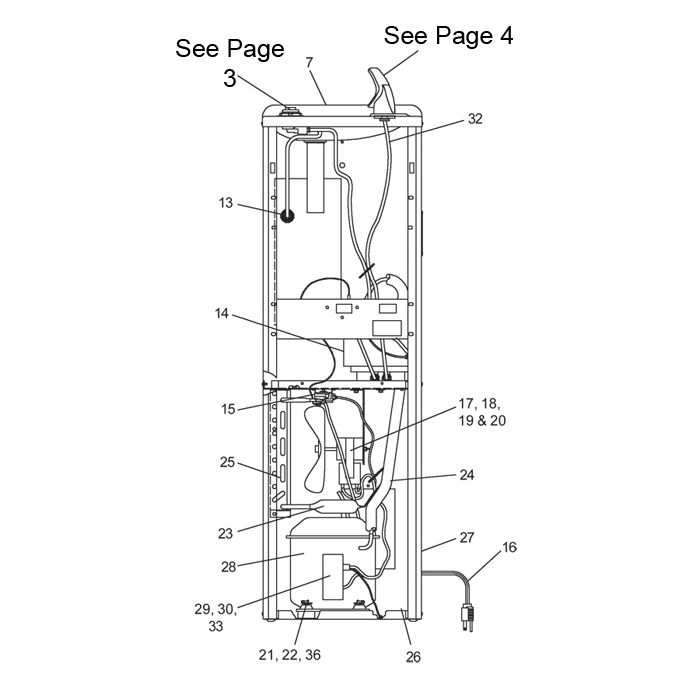

Elkay FD.E Parts Breakdown

Breakdown for models: FD7001,3,5,8,10*1E, LFDE8*1E, LFDE10*1E.

In stock

SKU: breakdown-FD.E

How to use this page:

1. Identify the part(s) you need in the image.

2. Look for the corresponding "Item #" in the list below.

3. Add item to cart

-or-

4. Click on the item to view more details

Item #


Part Details

Price

Qty

Elkay 40089C Bonnet Nut Chrome (Discontinued)

Item #: 102616

Learn More

$0.00

Out of stock

1-6

Elkay 98536C Drinking Fountain Push Button Valve Kit

Item #: 140045

Learn More

$91.80

Elkay 40048C Push Button Chrome (Discontinued)

Item #: 102615

Learn More

$0.00

Out of stock

Elkay 15005C Cartridge Retaining Nut

Item #: 102460

Learn More

$8.34

Out of stock

Elkay 61313C Valve Regulator Cartridge (Red Spring)

Item #: 102489

Learn More

$42.36

Elkay 40169C Hex Nut Chrome (Discontinued)

Item #: 102617

Learn More

$0.00

Out of stock

Elkay Cartridge Holder 50986C

Item #: 102478

Learn More

$43.75

Elkay 21782C ASSY -BASIN&TAILPIPE FD3F3

Item #: 135234

Learn More

$129.60

Elkay 21781C Basin Top & Drain Assembly

Item #: 102796

Learn More

$129.60

Elkay 92715C Flexi-Guard Bubbler Head Kit

Item #: 102494

Learn More

$37.80

Elkay 40322C Stream Breaker

Item #: 102823

Learn More

$15.40

Elkay 56011C Bubbler Guard (Discontinued)

Item #: 107210

Learn More

$16.45

Out of stock

Elkay 55997C Pedestal (Discontinued)

Item #: 107133

Learn More

$0.00

Out of stock

12a

Elkay 75580C Bubbler Kit Nut (Discontinued)

Item #: 106824

Learn More

$0.00

Out of stock

12b

Elkay 70012C Lock Nut

Item #: 102822

Learn More

$21.00

Elkay 55996C Strainer

Item #: 102483

Learn More

$27.50

14a

Elkay 66504C Evaporator Assembly (Short) (Discontinued)

Item #: 106290

Learn More

$0.00

Out of stock

14c

Elkay 98771C Evaporator Replacement Kit

Item #: 154593

Learn More

$342.90

14b

Elkay 98724C Evaporator Replacement Kit

Item #: 151228

Learn More

$296.10

14b

Elkay 66534C Evaporator Assembly (Discontinued)

Item #: 102777

Learn More

$0.00

Out of stock

Elkay 31513C Cold Control Thermostat

Item #: 102467

Learn More

$43.20

Elkay 31501C CORD -POWER 115V FD

Item #: 135929

Learn More

$33.44

17b & 18b-19

Elkay 98775C Fan Motor Assembly Kit

Item #: 162844

Learn More

$99.99

17a

Elkay 31341C Fan Motor

Item #: 102623

Learn More

$92.70

17b

Elkay 31490C Fan Motor (Discontinued)

Item #: 102518

Learn More

$0.00

Out of stock

18b

Elkay 30664C Fan Blade (Discontinued)

Item #: 106616

Learn More

$12.89

Out of stock

18a

Elkay 30824C Fan Blade

Item #: 102658

Learn More

$22.50

Elkay 70018C Nut - Hex 1/4 - 20 (Discontinued)

Item #: 106370

Learn More

$3.83

Out of stock

20a

Elkay 42677000 BRKT -FAN MOTOR

Item #: 134585

Learn More

$20.40

20b

Elkay 20282C Fan Motor Bracket

Item #: 135125

Learn More

$26.40

Elkay 50144C GRMMT-COMPRESSOR

Item #: 136255

Learn More

$9.07

Elkay 19037000 Clip (Discontinued)

Item #: 110864

Learn More

$0.00

Out of stock

23d

Elkay 66203C Drier- R134A ID .102

Item #: 106463

Learn More

$30.00

23c

Elkay 66202C Drier

Item #: 106303

Learn More

$30.00

23b

Elkay 66201C Drier

Item #: 106072

Learn More

$30.00

23a

Elkay 66200C DRIER-R134A ID.086

Item #: 136465

Learn More

$30.00

24d

Elkay 66558C HEATX-FD10

Item #: 136520

Learn More

$49.71

24c

Elkay 66508C HEATX-FD8

Item #: 136512

Learn More

$42.84

24b

Elkay 66301C HEATX-FD5

Item #: 136484

Learn More

$41.11

25a

Elkay 66303C CNDSR-1 ROW 134A

Item #: 136485

Learn More

$117.50

25c

Elkay 66305C Condenser CNDSR-2 Row 134A

Item #: 133770

Learn More

$177.30

26a

Elkay 21958C PANEL-FRONT FD N

Item #: 135254

Learn More

$79.94

26b

Elkay 20460C PANEL-FRONT FD S

Item #: 135128

Learn More

$180.90

26c

Elkay 21959C PANEL-FRONT (L)

Item #: 135255

Learn More

$54.45

26a

Elkay 21482C FD Front Panel

Item #: 106959

Learn More

$54.45

27b

Elkay 21486C CABNT-FD (T)

Item #: 135198

Learn More

$332.45

27d

Elkay 28196C CABNT-FD (L)

Item #: 135669

Learn More

$138.39

27a

Elkay 21487C CABNT-FD (N)

Item #: 135199

Learn More

$283.90

27c

Elkay 21239C CABNT-FD (SS)

Item #: 135163

Learn More

$573.30

28d

Elkay 35774C Compressor (Discontinued)

Item #: 107325

Learn More

$0.00

Out of stock

28a

Elkay 98195C Compressor Kit w/heat exchange,ovr, rel

Item #: 102516

Learn More

$246.41

28c

Elkay 35960C Compressor Serv Pak 115V

Item #: 102805

Learn More

$561.60

29a & 30b & 33b

Elkay 98535C Overload, Relay and Cover Kit - 115V

Item #: 140041

Learn More

$41.37

29b

Elkay 31797C Cover, Relay-Double Sided

Item #: 106699

Learn More

$14.44

Out of stock

29a

Elkay 35768C Cover Relay (Discontinued)

Item #: 129695

Learn More

$0.00

Out of stock

30d

Elkay 36196C Overload

Item #: 102706

Learn More

$32.50

30c

Elkay 36158C Overload 115V (Discontinued)

Item #: 106323

Learn More

$0.00

Out of stock

30a

Elkay 31029C Relay / Overload Assembly (Discontinued)

Item #: 102730

Learn More

$27.38

Out of stock

30b

Elkay 36176C Overload (Discontinued)

Item #: 102720

Learn More

$0.00

Out of stock

Elkay 50189C SHRD -FAN FD

Item #: 136261

Learn More

$15.89

Elkay 56092C Drinking Fountain Plastic Tubing 1/4" x 48"

Item #: 102487

Learn More

$15.40

33b

Elkay 35959C Relay (Discontinued)

Item #: 102705

Learn More

$0.00

Out of stock

33c

Elkay 36179C Relay (Discontinued)

Item #: 102731

Learn More

$0.00

Out of stock

33a

Elkay 36163C Relay (Discontinued)

Item #: 102854

Learn More

$16.12

Out of stock

Elkay 0000001192 Flat Black Gasket

Item #: 102517

Learn More

$12.60

Elkay 15009C Bubbler Head Nipple

Item #: 102461

Learn More

$50.40

Out of stock

Elkay 51294C Filter Housing Head

Item #: 102511

Learn More

$39.14

Out of stock

Elkay 70792C Screw

Item #: 107324

Learn More

$6.60

Elkay 70823C Fitting - Superseal 3/8(10mm)

Item #: 106622

Learn More

$15.00

Elkay 98532C Tubing, O-Ring & Fitting Kit

Item #: 140038

Learn More

$81.90

Elkay 51299C Drinking Fountain Replacement Filter (1500 Gallons)

Item #: 102502

Learn More

$94.17

Elkay 70818C Elbow Fitting 3/8 Stem 3/8 Tube

Item #: 102880

Learn More

$27.50

Elkay 70817C John Guest Fitting, 1/4" 90* Elbow F & M

Item #: 102736

Learn More

$37.50

Elkay 22490C BRKT -FILTER MOUNTING

Item #: 135271

Learn More

$32.50
