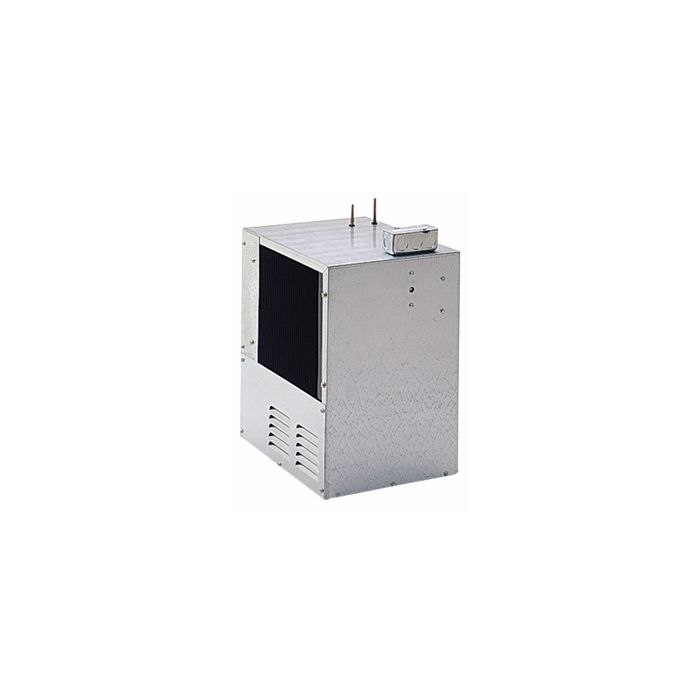

Elkay ER2 Remote Chiller, 2 GPH

*GENERAL* Remote type, electric refrigerated, water chiller unit. Chilling capacity of 2.5 gallons per hour of 50°F drinking water, based upon 80°F inlet water and 90°F ambient. Compact, highly efficient water chiller units are designed for use with any drinking fountain. Also connects to a bubbler, glass filler or cold water dispenser. Converts a fountain into a water cooler. Installs directly under fountain or other application, or may be located in a service area to serve a remote outlet (within 15 feet recommended). Also recommended for photo-processing, medical or experimental laboratories and a pre-cooler for beverage dispensing. *NO LEAD DESIGN* THIS WATER COOLER COMPLIES WITH THE LEAD-FREE DEFINITION IN THE SAFE DRINKING WATER ACT OF 1986 AND LEAD CONTAMINATION CONTROL ACT OF 1988. Elkay Water Chillers are manufactured with a waterway system utilizing copper components and completely lead-free materials. These waterways have no lead because all lead-containing materials, such as leaded brass, have been removed. All joints are brazed using silver solder only. No lead solder is permitted. *COOLING SYSTEM* * Motor Compressor: Hermetically sealed, reciprocating type, 1/20 HP, 115V, 60 Hz single phase. Sealed in lifetime oil supply. * Power: Rated 2.1 Amps, 185 Watts. * Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated. * Cooling Unit: Combination tube-tank type. Tube portion is continuous coil of copper tubing. Tank is copper. Tank volume is 0.7 gallons. * Refrigerant Control: Refrigerant HFC-134a is controlled by accurately calibrated capillary tube for positively trouble-free operation. * Temperature Control: Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements. *CONSTRUCTION* * Cabinet: Rust-resistant, galvanized steel. * Drain Plug: This chiller is provided with a plastic drain plug which incorporates an o-ring seal. This fitting is designed for potable water applications and should be replaced with a suitable fitting if chiller is used with more aggressive liquids. *5 YEAR LIMITED WARRANTY* on the refrigeration system of the unit. Electrical components and water system are warranted for 12 months from date of installation. Warranty pertains to drinking water applications only. Non-drinking water applications are not covered under warranty. Sample Certificate available on request.
