Zurn P6-PPC Wide Domestic Perforated Grate 20 in. x 5 3/8 in.
h3. PPC GRATE ENGINEERING SPECIFICATION

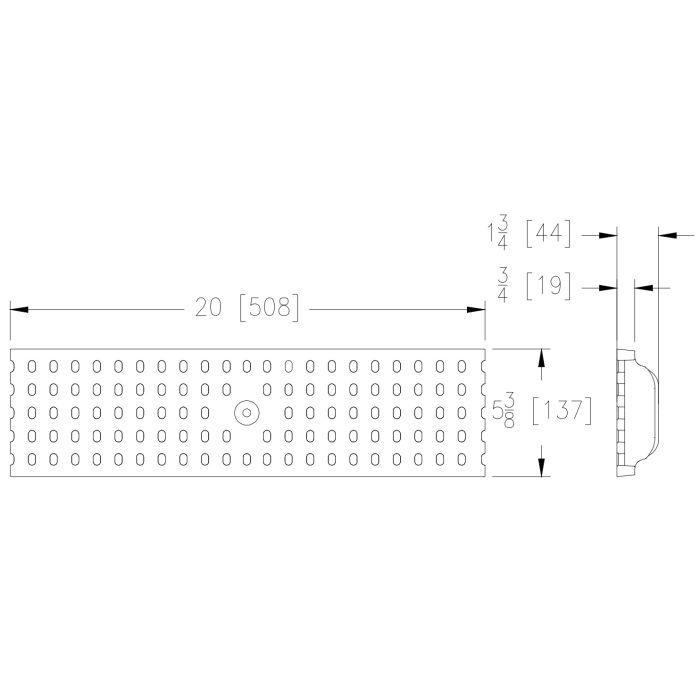

ZURN P6-PPC 20” [508mm] X 5-3/8” [137mm] Vinylester perforated plastic grate weighing 3.3 lbs per linear foot [4.9kg/m]. The grate has an open area of 6.6 in² per linear foot [140cm²/m]. Grate conforms to DIN rating of C, ANSI rating of Heavy-Duty and ADA Compliant, and Interplastic CORVE8300 or Reichhold DION 9100 or equivalent.
h3. PPC - Perforated Grate
* Material: Vinylester
* DIN Rating: Class C
* Weight: 3.3 lbs/ft. [4.9kg/m]
* Open Area: 6.6 in2/ft. [140cm²/m]
* ANSI Rating: Heavy-Duty
* Application: Heavy Loads, Non-metallic, Chemical
* Slot Width/Hole Size: 19/64” [7.5mm]
* ADA: Yes
* H-20: No
* FAA: No
In stock
- SKU
- 169121
$224.10
Description / Zurn P6-PPC Wide Domestic Perforated Grate 20 in. x 5 3/8 in.
h3. PPC GRATE ENGINEERING SPECIFICATION
ZURN P6-PPC 20” [508mm] X 5-3/8” [137mm] Vinylester perforated plastic grate weighing 3.3 lbs per linear foot [4.9kg/m]. The grate has an open area of 6.6 in² per linear foot [140cm²/m]. Grate conforms to DIN rating of C, ANSI rating of Heavy-Duty and ADA Compliant, and Interplastic CORVE8300 or Reichhold DION 9100 or equivalent.
h3. PPC - Perforated Grate
* Material: Vinylester
* DIN Rating: Class C
* Weight: 3.3 lbs/ft. [4.9kg/m]
* Open Area: 6.6 in2/ft. [140cm²/m]
* ANSI Rating: Heavy-Duty
* Application: Heavy Loads, Non-metallic, Chemical
* Slot Width/Hole Size: 19/64” [7.5mm]
* ADA: Yes
* H-20: No
* FAA: No
More Information
| Manufacturer | Zurn |
|---|---|
| Model # | P6-PPC |
| Manufacturer Part # | P6-PPC |
