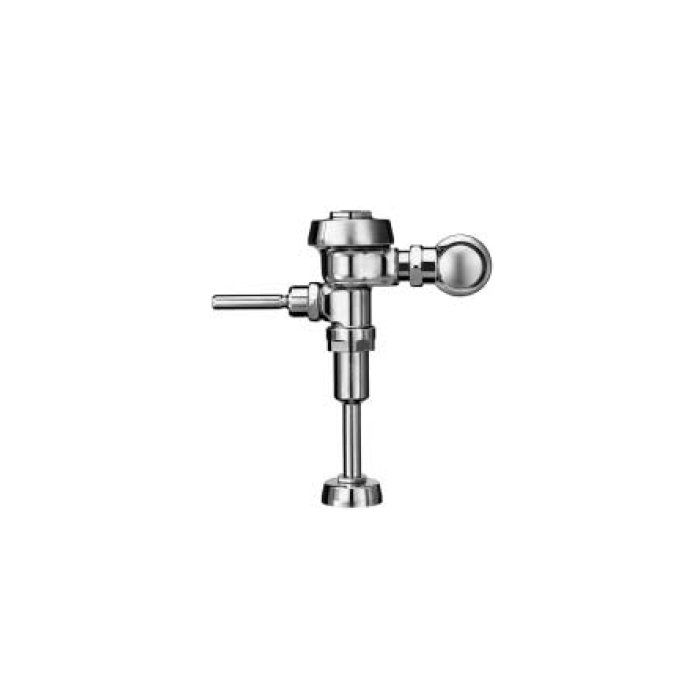

Sloan Royal 186-1 HL3 Push Button Flushometer
Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer with the following features:
* PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
* HL3 - 3" Metal Oscillating Push Button on front of valve (Non-ADA Compliant)
* 3/4" I.P.S. Screwdriver Bak-Chek Angle Stop
* Free Spinning Vandal Resistant Stop Cap
* Adjustable Tailpiece
* High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
* Spud Coupling and Flange for 3/4" Top Spud
* Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
* High Copper, Low Zinc Brass Castings for Dezincification Resistance
* Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
* Flush Accuracy Controlled by CID Technology
* Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance
In stock
- SKU
- 111014
$240.85
Description / Sloan Royal 186-1 HL3 Push Button Flushometer
Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer with the following features:
* PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
* HL3 - 3" Metal Oscillating Push Button on front of valve (Non-ADA Compliant)
* 3/4" I.P.S. Screwdriver Bak-Chek Angle Stop
* Free Spinning Vandal Resistant Stop Cap
* Adjustable Tailpiece
* High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
* Spud Coupling and Flange for 3/4" Top Spud
* Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
* High Copper, Low Zinc Brass Castings for Dezincification Resistance
* Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
* Flush Accuracy Controlled by CID Technology
* Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance
More Information
| Manufacturer | Sloan |
|---|---|
| Model # | ROYAL 186-1-HL3 |
| Manufacturer Part # | 3912663 |
| UPC Code | 671254048324 |
| Toilet/Urinal | Urinal |
| Gallons Per Flush (GPF) | 1.0 GPF |
| Vacuum Breaker Length | 9" |
| Spud Size | 3/4" |
| Flush Valve Application | Top Spud Urinals |
