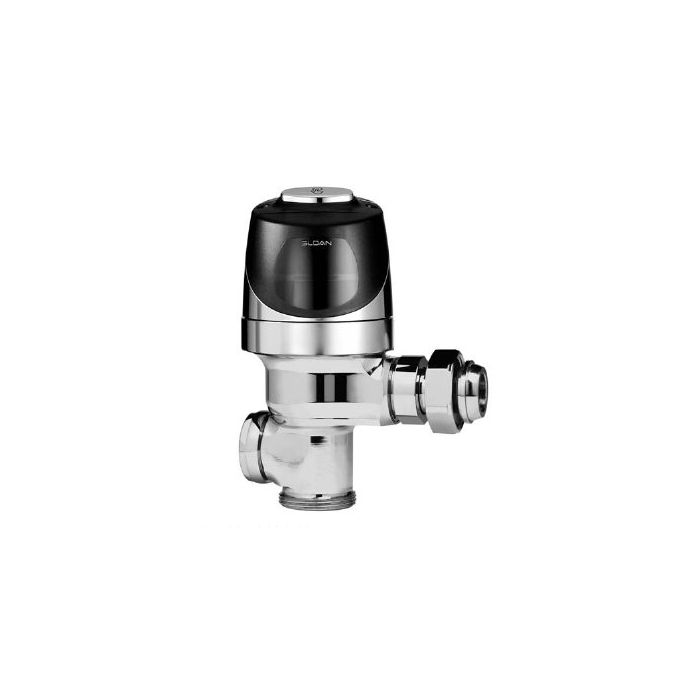

Sloan G2 RESS-XD-U Retrofit Kit

Battery Powered, Sensor Operated G2 Model Retrofit Conversion Kit for Exposed Urinal Flushometers that includes a Valve Body with an adjustable Ground Joint Tailpiece Connection. Designed to replace Coyne and Delany valves without replacing supply stop and vacuum breaker.

In stock

SKU
101608
  $495.75

Description / Sloan G2 RESS-XD-U Retrofit Kit

Quiet, Exposed, OPTIMA Plus, Battery Powered, Sensor Operated Urinal Flushometer Retrofit Conversion Kit for Adjustable Ground Joint Tailpiece Connection with the following features: * PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass * Flex Tube Diaphragm designed for improved life and reduced maintenance * ADA Compliant OPTIMA Plus Battery Powered Infrared Sensor for automatic "No Hands" operation * Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection * Latching Solenoid Operator * Engineered Metal Cover with replaceable Lens Window * Courtesy Flush Override Button * Four (4) Size AA Batteries factory installed * "Low Battery" Flashing LED * Infrared Sensor Range Adjustment Screw * Initial Set-up Range Indicator Light (first 10 minutes) * Valve Body with a Ground Joint Tailpiece * High Copper, Low Zinc Brass Castings for Dezincification Resistance * Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation * Flush Accuracy Controlled by CID Technology * Diaphragm to be molded from PERMEX Rubber Compound for Chloramine resistance

More Information

Manufacturer Sloan
Model # RESS-XD-U
Manufacturer Part # 3325405
UPC Code 671254268654
Filter Included No
Freeze Resistant No
Gooseneck Glass Filler None
