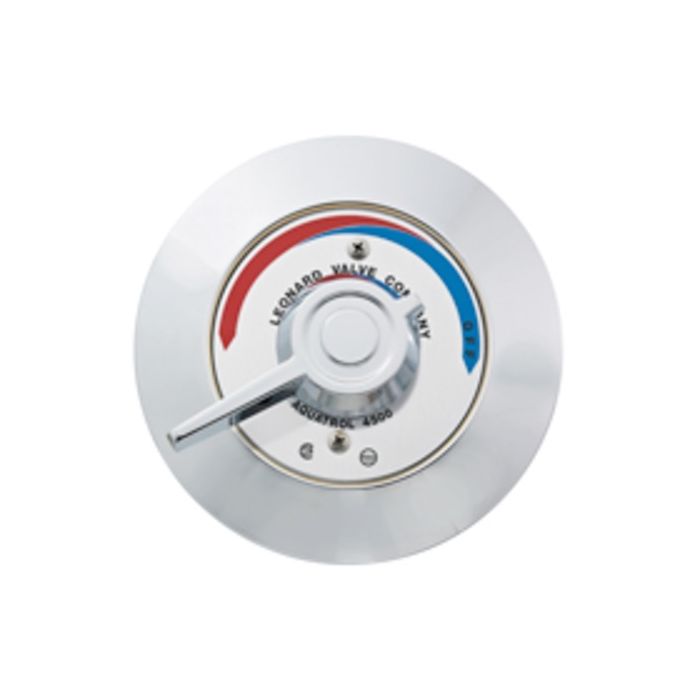

Leonard Aquatrol 4500 SHOWER TMV
The *Leonard Aquatrol 4500 Shower Valve* is designed with a stainless steel pressure balancing piston, bronze interior, and cast bronze body. Aquatrol automatically shuts down the hot and cold supply, should one or the other fail. All cast trim parts include an ADA compliant lever handle and color coded dial plate. Angle check stops and wall mounting flange are included.
In stock
- SKU
- 169215
$245.82
Description / Leonard Aquatrol 4500 SHOWER TMV
* Durable stainless steel balancing piston to equalize hot and cold supply pressures.
* Built-in shutoff for single handle operation
* Removable one piece upper and lower valve seat
* Internal parts of bronze and stainless steel
* Cast wall flange and lever handle, polished chrome plated
* Maximum operating pressure: 125 PSIG (860KPA)
* Adjustable high-temperature limit stop set for 110°F* (43ºC)
* Color coded dial, Off through Hot, with directional indicators
* Angle check stops, copper tube connection
* Plaster guard/thin wall mounting bracket included.
* Minimum flow 1.5 GPM (5.7 l/min)
h3. Specifications
*Inlets:* 1/2"
*Outlet:* 1/2"
*Maximum Flow(GPM):* 4
*Weight (pounds):* 7
h3. Certifications
*Valve is ASSE 1016 – Type P Certified*
*Valve is CSA B.125-16 – Type P Certified*
More Information
| Manufacturer | Leonard |
|---|---|
| Model # | 4500 |
| Manufacturer Part # | 4500 |
