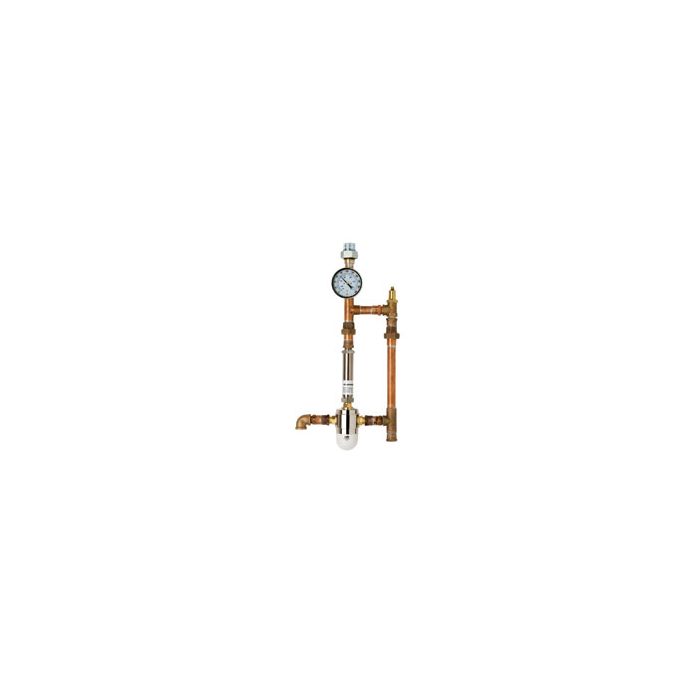

Haws TWBS.EW Tempered Water Blending System 5 GPM (Discontinued)
The *Haws TWBS.EW Tempered Water Blending System 5 GPM* is a prepackaged, fully engineered and tested system that mixes hot and cold water to supply tempered water to one eye/face wash or two eyewash fixtures requiring flow up to 5 gallons per minute (GPM). The system consists of a thermostatic mixing valve, a high temperature limit valve, a bypass valve, and an outlet temperature gauge.
Out of stock
- SKU
- 137349
$0.00
Description / Haws TWBS.EW Tempered Water Blending System 5 GPM (Discontinued)
* Unit is constructed of bronze, brass, copper, and stainless steel.
* Ideal for areas where supply water temperatures falls below 60 degrees F while hot water supply is available.
* Unit contains no electrical components, thus suitable for combustible atmospheres.
* Maximum inlet pressure: 125 psi. Maximum inlet temperature: 180 degrees F. Recommended inlet temperature: 140 degrees F.
* Pressure requirements: 50 psi to adequately supply water for eye/face wash.
* Inlet and Outlet: 1/2" IPS. Dielectric outlet union provided.
More Information
| Manufacturer | Haws |
|---|---|
| Model # | TWBS.EW |
