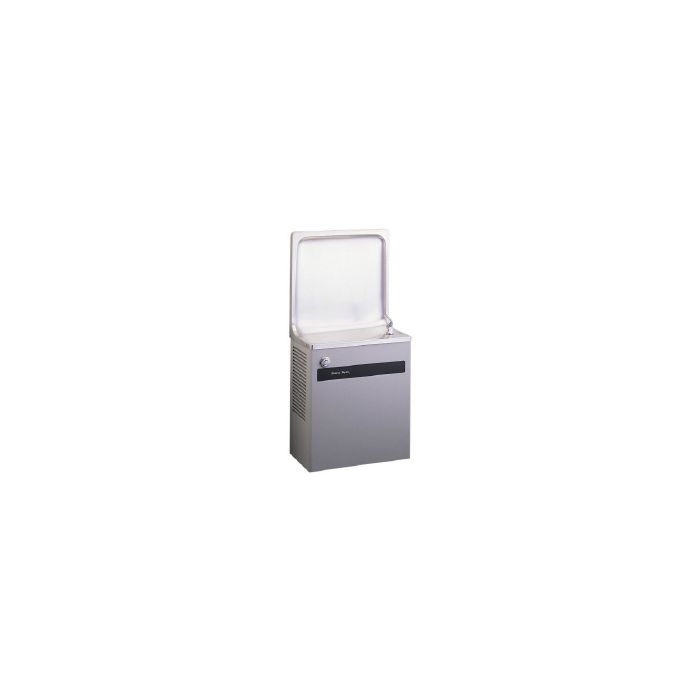

Halsey Taylor HBW8A-Q Semi-Recessed Backsplash Drinking Fountain (Discontinued)

*Cabinet:* Heavy-gauge vinyl clad steel. Resistant to wear, moisture, perspiration, heat, and sunlight. Optional Stainless Steel is available. *Cooler Top:* Non-corrosive stainless steel cooler top, number 300 series with satin finish resists stains and corrosion and is easy to maintain. Anti-splash ridge reduces splatter. Contoured to insure proper drainage. *Bubbler:* Exclusive one-piece, chrome-plated two-stream mound-building bubbler with non-removable anti-squirt feature and integral hood insures a satisfying drink of water. *Push Button Actuation Mechanism:* Self-closing, vandal-resistant push-button does not require grasping or twisting. *Automatic Stream Height Regulator:* Self-closing assembly is located inside unit to prevent tampering. Unit resists corrosion and liming. A constant stream height is automatically maintained under line pressures that vary from 20 to 105 psi. *Inlet Strainer:* Easily cleaned in-line strainer screen traps particles of 140 microns or larger before they enter the waterway. *Temperature Control:* Positive sensing thermostat for controlling temperature of storage tank water. Factory set at 50° F Adjustable ± 5° F. *Storage Tank:* Non-pressurized stainless steel evaporator/storage tank for long life. Waterways are certified to NSF/ANSI 61, far exceeding the requirements of the Safe Drinking Water Act. *Refrigeration System:* Hermetically sealed, positive start compressor with lifetime lubrication and built-in overload protection, efficient capillary sizing, large capacity dryer-strainer, and water cooled copper/aluminum condenser with maximum heat exchange. System uses R134A refrigerant. Protected by Halsey Taylor's Limited 5 Year Warranty. *Ventilation:* Insure proper ventilation by maintaining 6" (152mm) minimum clearance from cabinet louvers to wall. h3. Suggested Specifications Shall deliver 8 GPH of 50° F water at 90° F ambient and 80° F inlet water. Shall have stainless steel basin with removable drain strainer. Bubbler shall be two-stream, mound building type. Separate valve and automatic stream regulator shall be mounted within cabinet. Refrigeration system shall employ high efficiency, positive start compressor using R134A, non-pressurized tank with totally encapsulated insulation and be controlled by positive sensing thermostat. The manufacturer shall certify the unit to meet the requirements of NSF/ANSI 61, and the Safe Drinking Water Act. Unit complies with ARI Standard 1010.
