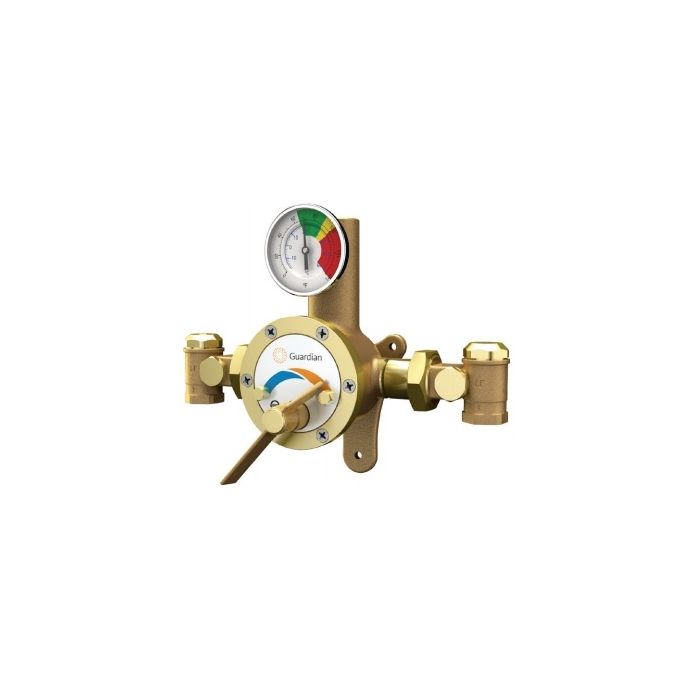

Guardian G3800LF Tempering Valve, 44 Gallon LF
h3. Application
Tempering valve to blend hot and cold water to deliver tepid water. Valve has flow capacity of 3.0 to 44 gallons per minute (GPM). Valve can be used with single installation of an emergency shower or safety station, or multiple installations of eyewash, eye/face wash, dual purpose eyewash/drench hose, or drench hose units.
h3. Temperature Control
Valve has bimetallic thermostat that senses incoming water temperature and automatically blends water to 85°F (29°C). High temperature limit stop is set to 90°F (32°C). Valve has dial thermometer on outlet to monitor temperature of delivered water. Note: Valve may need to be adjusted when installed based on incoming water temperature. Refer to “Installation Instructions” on the following page for further information.
h3. Fail Safe
In event of restriction or failure of hot water supply, internal bypass allows valve to deliver cold water to emergency unit. In bypass mode, valve will deliver 20 GPM of cold water at 30 PSI flow pressure. In event of loss of cold water supply, valve will close to prevent scalding and not deliver water.
h3. Supply Temperature
Minimum recommended hot water supply temperature is 120°F (49°C). Note: Extremely cold climates may require a hot water supply temperature greater than 120°F (49°C).
h3. Supply Pressure
30 PSI minimum supply pressure is required for proper valve operation. Maximum supply pressure is 125 PSI. Maximum hot to cold water pressure differential is 5%.
h3. Mounting
Furnished with heavy duty mounting bracket for securing valve to panel or wall.
h3. Inlet
Inlets: 1" NPT female hot and cold water inlets. Inlets can be rotated 360 degrees for top or bottom supply. Each inlet has integral water strainer, check valve and supply stop.
h3. Outlet
1-1/4" NPT female outlet.
h3. Quality Assurance
Valve is completely assembled and water tested prior to shipment. Valve is certified to ASSE 1071. Valve is certified to meet low lead requirements of wetted surface area less than 0.25% lead by weight.
Out of stock
- SKU
- 162584
$1,254.17
Description / Guardian G3800LF Tempering Valve, 44 Gallon LF
h3. Application
Tempering valve to blend hot and cold water to deliver tepid water. Valve has flow capacity of 3.0 to 44 gallons per minute (GPM). Valve can be used with single installation of an emergency shower or safety station, or multiple installations of eyewash, eye/face wash, dual purpose eyewash/drench hose, or drench hose units.
h3. Temperature Control
Valve has bimetallic thermostat that senses incoming water temperature and automatically blends water to 85°F (29°C). High temperature limit stop is set to 90°F (32°C). Valve has dial thermometer on outlet to monitor temperature of delivered water. Note: Valve may need to be adjusted when installed based on incoming water temperature. Refer to “Installation Instructions” on the following page for further information.
h3. Fail Safe
In event of restriction or failure of hot water supply, internal bypass allows valve to deliver cold water to emergency unit. In bypass mode, valve will deliver 20 GPM of cold water at 30 PSI flow pressure. In event of loss of cold water supply, valve will close to prevent scalding and not deliver water.
h3. Supply Temperature
Minimum recommended hot water supply temperature is 120°F (49°C). Note: Extremely cold climates may require a hot water supply temperature greater than 120°F (49°C).
h3. Supply Pressure
30 PSI minimum supply pressure is required for proper valve operation. Maximum supply pressure is 125 PSI. Maximum hot to cold water pressure differential is 5%.
h3. Mounting
Furnished with heavy duty mounting bracket for securing valve to panel or wall.
h3. Inlet
Inlets: 1" NPT female hot and cold water inlets. Inlets can be rotated 360 degrees for top or bottom supply. Each inlet has integral water strainer, check valve and supply stop.
h3. Outlet
1-1/4" NPT female outlet.
h3. Quality Assurance
Valve is completely assembled and water tested prior to shipment. Valve is certified to ASSE 1071. Valve is certified to meet low lead requirements of wetted surface area less than 0.25% lead by weight.
More Information
| Manufacturer | Guardian |
|---|---|
| Model # | G3800LF |
