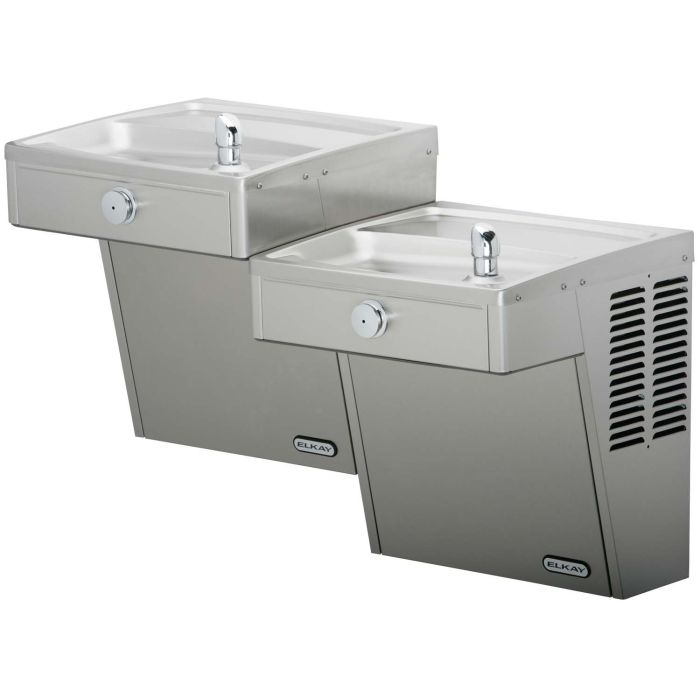

Elkay VRCTLFR8SC Frost-Resistant Vandal-Resistant Dual Drinking Fountain

h3. GENERAL INFORMATION * Self-contained, double wall hung electric refrigerated, water cooler * Vandal-resistant unit for use in high demand locations where vandalism may occur * Rated for indoor or outdoor use * Stainless steel construction provides vandal-resistant enclosure * Optional perforated stainless steel louver screening prevents objects from being inserted into cooler * Flow regulator provides constant stream from 20 to 105 psi water pressure * Heavy duty push button control is vandal-resistant h3. ADA COMPLIANT These Water Coolers comply with the requirements of A.D.A. (Americans with Disabilities Act) when properly installed. Also meets the guidelines for children’s environments providing the floor to orifice height is 30" or less and proper clear floor space is provided for parallel approach. (Based on Architectural and Transportation Barriers Compliance Board final ruling.) Check Local and State Codes. h3. NO LEAD DESIGN These Water Coolers are certified to be lead-free as defined by the Safe Drinking Water Act. Elkay Water Coolers are manufactured with a waterway system utilizing copper components and completely lead-free materials. These waterways have no lead because all lead materials, such as leaded brass, have been removed. All joints are brazed using silver solder only. No lead solder is permitted. A strainer with an easily cleanable screen is provided to allow trapping and convenient removal of waterborne particulate of 140 microns and larger prior to their entry into the water cooler. h3. COOLING SYSTEM * *Motor Compressor*: Hermetically sealed, reciprocating type, 120 Volt/60 Hz, single phase or 220-240 Volt/50 Hz or 60 Hz, two phase. Sealed-in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug. * *Condenser*: Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated. * *Cooling Unit*: Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam which meets Underwriters Laboratories Inc. requirements for self extinguishing material. * *Refrigerant Control*: Refrigerant HFC-134a is controlled by accurately calibrated capillary tube for positively trouble-free operation.
