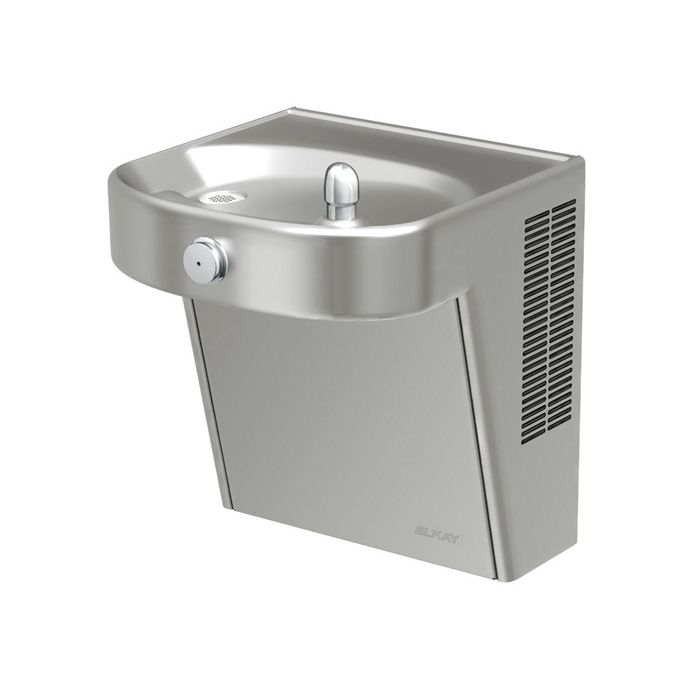

Elkay VRCHD8S Heavy Duty Vandal-Resistant Drinking Fountain

h3. GENERAL Self-contained, wall hung electric refrigerated water coolers with reliable vandal-resistant design. Constructed in 14 gauge heavy-duty stainless steel with durable satin finish that resists stains and corrosion. The curved profile offers a safe and unobtrusive design. Ideal for applications prone to tampering, such as prisons and educational facilities. Includes the water efficient, StreamSaver™ bubbler. h3. DESIGN Frame: Galvanized structural steel chassis supports cooler housing. Housing: Heavy-duty 14 gauge stainless steel cabinet with front access panel and integral basin. Screened Vents:Perforated vent screens prevent objects from being inserted into cooler. Vandal-Resistant StreamSaver™ Bubbler: One-piece, heavy-duty, chrome-plated, solid construction. Reduces the flow of water by nearly 40%* but maintains a steady, satisfying water stream. Keyed into position to prevent rotation. Vandal-Resistant Drain: Heavy-duty, one-piece construction. Vandal-Resistant Pushbutton: Heavy-duty, self-closing, easyto-operate. Allows front access stream height adjustment. Note – Flow regulator provides constant stream from 20 to 105 psi water pressure. h3. COOLING SYSTEM Motor Compressor: Hermetically sealed, reciprocating type, 120 Volt/60 Hz, single phase. Sealed-in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug. Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated. Cooling Unit: Stainless steel evaporator with continuous coil of copper tubing. Fully insulated with EPS foam which meets Underwriters Laboratories Inc. requirements for self extinguishing material. Single unit models designed with a nonpressurized tank which is subject to line pressure only when push button is pressed. Refrigerant HFC134a Control: Accurately calibrated capillary tube for positively trouble-free operation. Temperature Control: Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements. Easily accessible.
