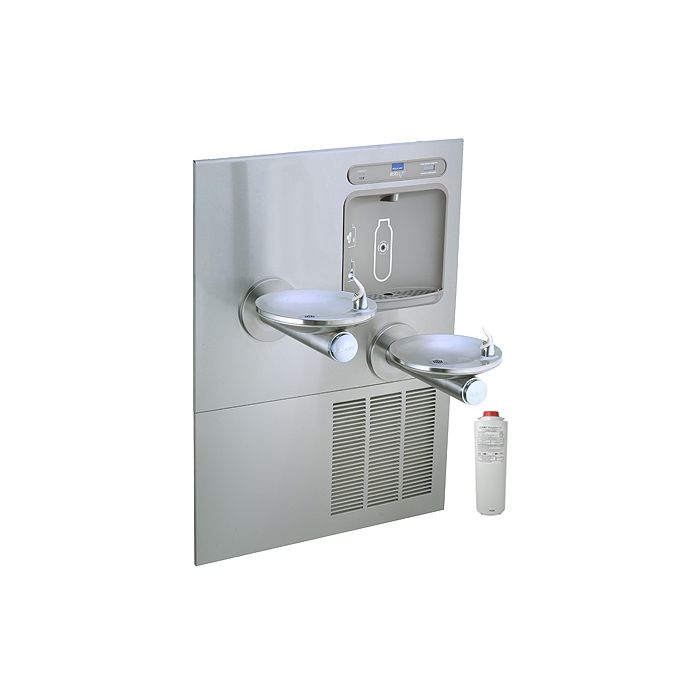

Elkay LZWS-LRPBM28K Filtered SwirlFlo Integral Bottle Filling Station

h3. PRODUCT SPECIFICATION Architectural fountains with integral bottle filling station. LZWS-LRPBM28K shall deliver 8 GPH of 50°F drinking water at 90°F ambient and 80°F inlet water. Units shall be stainless steel construction with plastic ABS alcove. Sensoractivation with an auto 20-second shut-off timer. Shall include Green Ticker™ displaying count of plastic bottles saved from waste. Bottle filler shall provide 1.1 gpm flow rate with laminar flow to minimize splashing. Shall include the Water Sentry® Plus 3000-gallon capacity filter, certified to NSF/ANSI 42 and 53, with visual monitor to indicate when replacement is necessary. Shall include integrated silver ion anti-microbial protection in key areas. Unit shall meet ADA guidelines. Unit shall be lead-free design which is certified to NSF/ANSI 61 and 372 and meets Federal and State low-lead requirements. Unit shall be certified to UL399 and CAN/CSA 22.2 No. 120. h3. BOTTLE FILLER STANDARD FEATURES * No-touch, sensor-activated operation * Auto 20-second shut-off * WaterSentry®Plus 3000-gallon capacity Filtration System, certified to NSF/ANSI 42 & 53 (Lead, Class 1 Particulate, Chlorine, Taste & odor) * Integrated Silver Ion Anti-microbial Protection in key areas * Quick Fill Rate: 1.1 gpm * Laminar Flow provides minimal splash * Real Drain System eliminates standing water * Visual User Interface display includes: Innovative Green Ticker™ counts bottles saved from waste LED Visual Filter Monitor shows when replacement is necessary * Includes lower panel for easy access and servicing h3. COOLING SYSTEM * Compressor: Hermetically-sealed, reciprocating type, single phase.Sealed-in lifetime lubrication * Condenser: Fan cooled. Fan motor is permanently lubricated * Cooling Unit: Combination tube-tank type. Continuous copper tubing with stainless steel tank. Fully insulated with EPS foam which meets UL requirements for self-extinguishing material * Refrigerant control: Refrigerant R134a is controlled by accurately calibrated capillary tube * Temperature Control: Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements, easily accessible by removing lower grille panel
