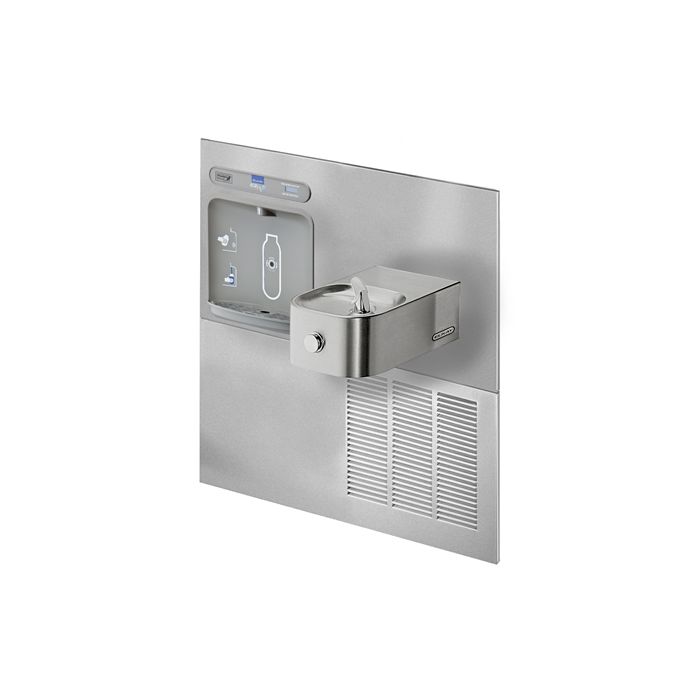

Elkay LZWS-ERFP8-RF Retro-fit Soft Sides Bottle Filling Station (Filtered)

*FOUNTAIN NOT INCLUDED* *Each* *LZWS-ERFP8-RF* is shipped in one carton containing: * Upper panel with installed bottle filler * Lower panel with ventilation louvers * Mounting frame for bottle filler * WaterSentry® Plus Filter * Misc. hardware h3. PRODUCT SPECIFICATION In-wall LZWS-ERFP8-RF Retro-fit system will update existing refrigerated Bi-Level Soft Sides® installations with an integrated Bottle Filler system. Units shall be stainless steel construction with plastic ABS alcove. Sensor activation with an auto 20-second shut-off timer. Shall include GreenTicker™ displaying count of plastic bottles saved from waste. Bottle filler shall provide 1.1 gpm flow rate with laminar flow to minimize splashing. Shall include integrated silver ion anti-microbial protection in key areas. Bottle filler meets ADA guidelines for reach range; fountain meets ADA guidelines for wheelchair access. Unit shall be lead-free design which is certified to NSF/ANSI 61 and 372 and meets Federal and State low-lead requirements. Unit shall be certified to UL399 and CAN/CSA 22.2 No. 120. h3. STANDARD FEATURES * No-touch, sensor-activated operation. * Auto 20-second shut-off. * WaterSentry® Plus 3000-gallon capacity Filtration System, certified to NSF/ANSI 42 & 53 (Lead, Class 1 Particulate, Chlorine, Taste & Odor) * Integrated Silver Ion Anti-microbial Protection in key areas * Quick Fill Rate: 1.1 gpm * Laminar Flow provides minimal splash * Real Drain System eliminates standing water h3. FOUNTAINS / COOLING SYSTEM One fountain, one mounting frame (for lower fountain installation) and the cooling system are reused from the current existing installation. h3. CONSTRUCTION * Stainless steel bottle filler construction with ABS plastic alcove. * Includes ventilating louvered grille with fountain. * Furnished with open wall frame mounting box constructed of galvanized steel.
