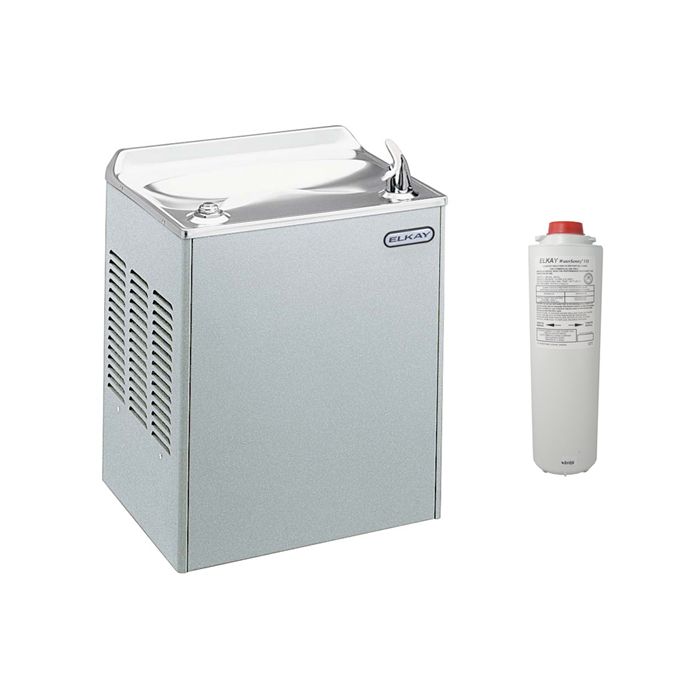

Elkay LWCE8L1Z Filtered Drinking Fountain

h3. GENERAL INFORMATION * Self-contained, electric refrigerated, wall hung water cooler * Capacity of 50°F drinking water, based upon 80°F inlet water and 90°F ambient * Non-pressurized tank system is standard * Non-pressurized water tank is located after bubbler valve, so that tank is subject to line pressure only when valve button is pressed h3. NO LEAD DESIGN This water cooler complies with the lead-free definition in the safe drinking water act of 1986 and lead contamination control act of 1986. h3. COOLING SYSTEM * *Motor Compressor*: Hermetically sealed, 115V, 60 Hz single phase. Sealed-in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug. * *Condenser*: Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated. * *Cooling Unit*: Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam which meets Underwriters Laboratories Inc. requirements for self extinguishing material. * *Refrigerant Control*: Refrigerant HFC-134a is controlled by accurately calibrated capillary tube for positively trouble-free performance. * *Temperature Control*: Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements. h3. CONSTRUCTION * *Fountain Top*: Type 304 one piece stainless steel top, polished to a uniform Elkay bright luster finish. Exclusive Cascade basin, tested most splash-resistant, features multilevel deck design with a built-in vandal-resistant strainer. * *Exclusive Flexi-Guard Safety Bubbler*: Innovative design utilizes a pliable elastomer to prevent accidental mouth injuries. Flexes on impact, then returns to original position. Strong. Abrasion-resistant. Anti-sweat. Meets UL requirements and all sanitary codes. * *Removable Panel*: Removable front panel offers easy accessibility to interior. * *Cabinet*: Cabinet allows for flush to wall mounting
