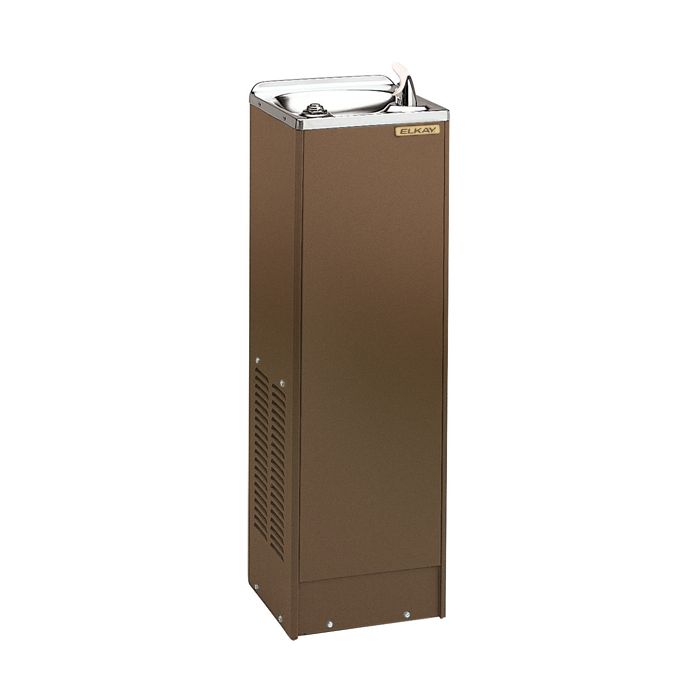

Elkay FD7003T1Z Sandalwood Drinking Fountain

The *FD Series* is Elkay's Space-Ette standard floor drinking fountain line and feature a space-saving design that's ideal for placement in smaller locations. The *FD7003T1Z Water Cooler* is a 3 GPH (gallons per hour) unit with a top push button.

Out of stock

SKU
102361
  $1,261.40

Description / Elkay FD7003T1Z Sandalwood Drinking Fountain

h3. No Lead Design The Elkay FD7003 water cooler complies with the lead-free definition in the Safe Drinking Water Act Of 1986 and Lead Contamination Control Act of 1988. Elkay Water Coolers are manufactured with a waterway system utilizing copper components and completely lead-free material. These waterways have no lead because all lead materials, such as leaded brass, have been removed. All joints are brazed using silver solder only. No lead solder is permitted. A strainer with an easily cleanable screen is provided to allow trapping and convenient removal of water born particulate of 140 microns and larger prior to their entry into the water cooler. The Elkay FD7003 water cooler is certified to NSF/ANSI 61. h3. Cooling System * *Motor Compressor:* Hermetically sealed, reciprocating type, 115V, 60 Hertz single phase. Sealed-in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug. * *Condenser:* Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated. * *Cooling Unit:* Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam which meets Underwriters Laboratories Inc. requirements for self extinguishing material. * *Refrigerant Control:* Refrigerant HFC-134a is controlled by accurately calibrated capillary tube for positively trouble free performance. * *Temperature Control:* Enclosed adjustable thermostat is factory pre-set. Requires no adjustment other than for altitude requirements. h3. Construction * *Cabinet:* Cabinet wrapper supports fountain top and all working mechanisms. Removable front panel and cabinet sides are Sandalwood vinyl. Stainless Steel cabinet available at extra cost. * *Fountain Top:* One piece stainless steel top, polished to a uniform Elkay bright luster finish. Unique Swirl-Flo basin has an integral vandal-resistant strainer, embossed bubbler pad. * *Exclusive Flexi-Guard® Safety Bubbler*:* Innovative design utilizes an infused anti-microbial pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact, then returns to original position. Strong. Abrasion-resistant. Anti-sweat. Keyed in location to prevent rotation. *5 YEAR LIMITED WARRANTY* on the refrigeration system of the unit. Electrical components and water system are warranted for 12 months from date of installation. Sample Certificate available on request. Elkay Pressure-Type Water Coolers are designed to operate on 20 psi to 105 psi supply line pressure. If inlet pressure is above 105 psi, a pressure regulator must be installed in the supply line. Any damage caused by reason of connecting this product to supply line pressures lower than 20 psi or higher than 105 psi is not covered by the warranty.

More Information

Manufacturer Elkay
Model # FD7003T1Z
UPC Code 094902218229
Gooseneck Glass Filler None
ADA Compliant No
Mounting Location Floor Mounted
Freeze Resistant No
Outdoor Rated No
Refrigerated Yes
Water Cooling Capacity 3 GPH
Finish Brown
Filter Included No
