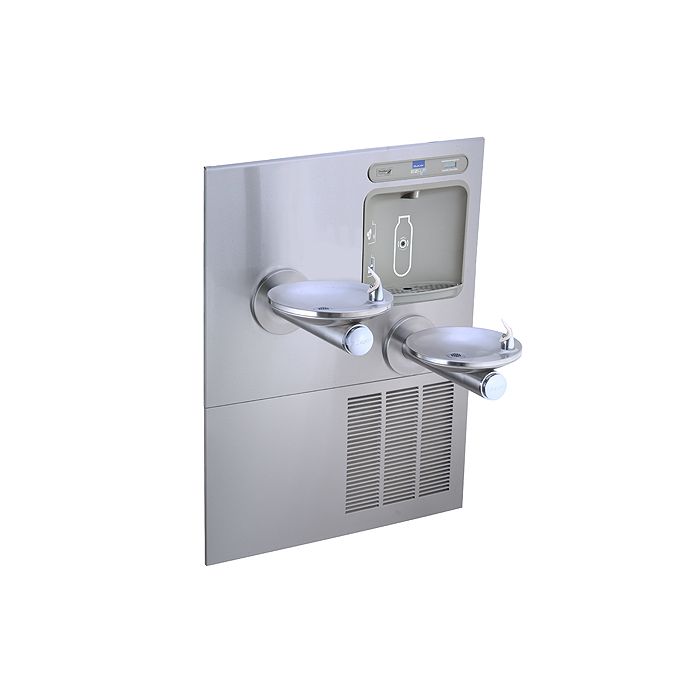

Elkay EZWS-ERPBM28K SwirlFlo Integral Bottle Filling Station

h3. PRODUCT SPECIFICATION Architectural fountains with integral bottle filling station. EZWS-LRPBM28K shall deliver 8 GPH of 50°F drinking water at 90°F ambient and 80°F inlet water. Units shall be stainless steel construction with plastic ABS alcove. Sensor-activation with an auto 20-second shut-off timer. Shall include Green Ticker™ displaying count of plastic bottles saved from waste. Bottle filler shall provide 1.1 gpm flow rate with laminar flow to minimize splashing. Shall include integrated silver ion anti-microbial protection in key areas. Unit shall meet ADA guidelines. Unit shall be leadfree design which is certified to NSF/ANSI 61 and 372 and meets Federal and State low-lead requirements. Unit shall be certified to UL399 and CAN/CSA 22.2 No. 120. h3. BOTTLE FILLER STANDARD FEATURES * No-touch, sensor-activated bottle filler with auto 20-second shut-off * Front Pushbutton activation on fountains * Integrated Silver Ion Anti-microbial Protection in key areas * Quick Fill Rate: 1.1 gpm * Laminar Flow provides minimal splash * Real Drain System eliminates standing water * Visual User Interface display includes: Innovative Green Ticker™ counts bottles saved from waste Includes lower panel for easy access and servicing h3. COOLING SYSTEM * Compressor: Hermetically-sealed, reciprocating type, single phase. Sealed-in lifetime lubrication * Condenser: Fan cooled. Fan motor is permanently lubricated * Cooling Unit: Combination tube-tank type. Continuous copper tubing with stainless steel tank. Fully insulated with EPS foam which meets UL requirements for self-extinguishing material * Refrigerant control: Refrigerant R134a is controlled by accurately calibrated capillary tube * Temperature Control: Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements, easily accessible by removing lower grille panel h3. CONSTRUCTION EZWS-ERPBM28K two-level fountain furnished complete with Flexi-Guard® fully assembled with front push button, flow regulator (120 to 105 psi), stainless steel back panel. No traps are furnished. * Stainless Steel bottle filler construction with ABS plastic alcove. * Includes stainless steel lower panel. * Furnished with wall mounting frame constructed of galvanized steel. Mounting can be ordered separately for pre-install.
