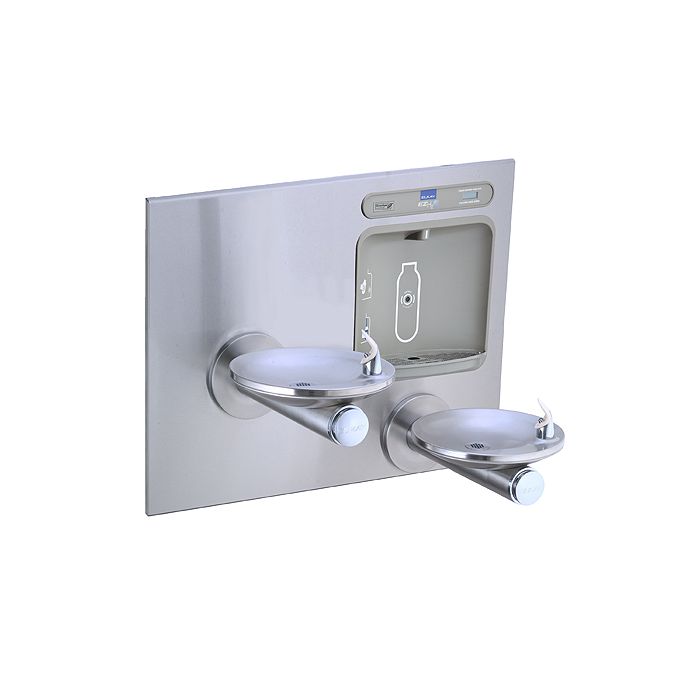

Elkay EZWS-EDFPBM117K SwirlFlo NON-REFRIGERATED Drinking Fountain with Integral Bottle Filling Station

h3. PRODUCT SPECIFICATION Architectural fountains with integral bottle filling station. EZWS-EDFPBM117K shall deliver non-chilled drinking water unless connected to a remote water chiller. Units shall be stainless steel construction with plastic ABS alcove. Sensor-activation with an auto 20-second shut-off timer. Shall include Green Ticker™ displaying count of plastic bottles saved from waste. Bottle filler shall provide 1.5 gpm flow rate with laminar flow to minimize splashing and 1.1 gpm flow rate when connected to a remote water chiller. Shall include integrated silver ion anti-microbial protection in key areas. Unit shall meet ADA guidelines. Unit shall be lead-free design which is certified to NSF/ANSI 61 and 372 and meets Federal and State low-lead requirements. Unit shall be certified to UL399 and CAN/CSA 22.2 No. 120. h3. BOTTLE FILLER FEATURES * No-touch, sensor-activated bottle filler * Auto 20-second shut-off * Integrated Silver Ion Anti-microbial Protection in key areas * Quick Fill Rate: 1.5 gpm * Laminar Flow provides minimal splash * Real Drain System eliminates standing water * Visual User Interface display includes: Innovative Green Ticker™ counts bottles saved from waste h3. FOUNTAINS GENERAL Fully exposed two-level fountain basins are #18 gauge. 300 series stainless steel polished to a lustrous satin finish with high shine outer edge. #16 gauge, 300 series tubular stainless steel support arms incorporate unique recess to be integrated with basin. One fountain positioned lower on the right for wheel-chair use. The other positioned on the left at standing height. Fountains have contoured basin that minimizes splashing. Flexi-Guard Safety bubblers are keyed in location to prevent rotation. Filly functional, vandal-resistant front push button. Flow regulator provides constant stream from 20 to 105 PSI water pressure.
