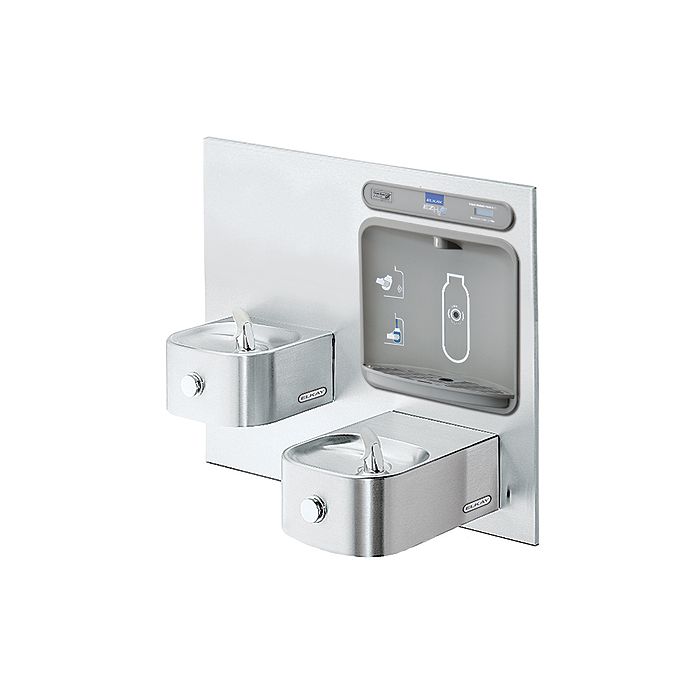

Elkay EZWS-EDFP217K Soft Sides Intergral Bottle Filling Station NON-REFRIGERATED Drinking Fountain

h3. PRODUCT SPECIFICATION Architectural fountains with integral bottle filling station. EZWS-EDFP217K shall deliver non-chilled drinking water unless connected to a remote water chiller. Units shall be stainless steel construction with plastic ABS alcove. Sensor-activation with an auto 20-second shut-off timer. Shall include Green Ticker™ displaying count of plastic bottles saved from waste. Bottle filler shall provide 1.5 gpm flow rate with laminar flow to minimize splashing and 1.1 gpm flow rate when connected to a remote water chiller. Shall include integrated silver ion anti-microbial protection in key areas. Unit shall meet ADA guidelines. Unit shall be lead-free design which is certified to NSF/ANSI 61 and 372 and meets Federal and State low-lead requirements. Unit shall be certified to UL399 and CAN/CSA 22.2 No. 120. h3. BOTTLE FILLER FEATURES * No-touch, sensor-activated bottle filler * Auto 20-second shut-off * Integrated Silver Ion Anti-microbial Protection in key areas * Quick Fill Rate: 1.5 gpm * Laminar Flow provides minimal splash * Real Drain System eliminates standing water h3. CONSTRUCTION EZWS-EDFP217K two-level fountain furnished complete with Flexi-Guard® fully assembled with front push button, flow regulator (120 to 105 psi), stainless steel back panel. No traps are furnished. * Stainless Steel bottle filler construction with ABS plastic alcove * Furnished with wall mounting frame constructed of galvanized steel * Mounting can be ordered separately for pre-install
