Elkay EZF(S).C Drinking Fountain Parts Breakdown

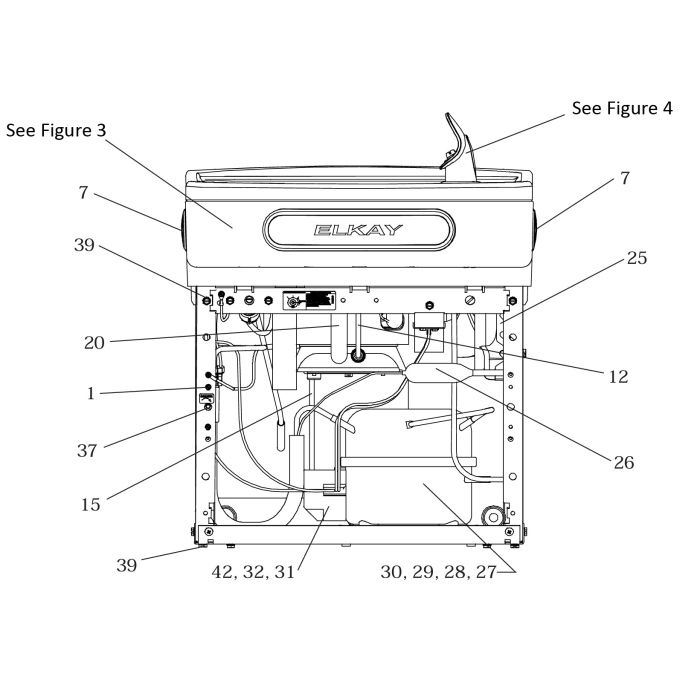

Exploded Parts Diagram for (.C revision) Model Numbers:

In stock

SKU: breakdown-EZF(S).C

How to use this page:

1. Identify the part(s) you need in the image.

2. Look for the corresponding "Item #" in the list below.

3. Add item to cart

-or-

4. Click on the item to view more details

Item #


Part Details

Price

Qty

Elkay 98898C EZ Hardware Kit

Item #: 162848

Learn More

$21.00

Elkay 56230C Upper Shroud w/ Front Push Button (Discontinued)

Item #: 102785

Learn More

$65.50

Out of stock

Elkay 56229C Upper Shroud (with Front and Side Push Bars)

Item #: 107621

Learn More

$99.90

Elkay 35948C Push Bar Switch (Discontinued)

Item #: 102468

Learn More

$0.00

Out of stock

Elkay 36217C ASSY -WIRING FRNT PSH

Item #: 136069

Learn More

$25.73

Elkay 36216C Wiring Assembly (Front/Side Pushbars)

Item #: 106462

Learn More

$61.20

Elkay 36161C White Power Jumper Wire

Item #: 133510

Learn More

$11.55

Elkay 36162C Black Jumper Wire

Item #: 133511

Learn More

$6.60

Elkay 56074C Push-Filler Side (Discontinued)

Item #: 106708

Learn More

$0.00

Out of stock

Elkay 56002C EZ-Series Drinking Fountain Side Pushbar

Item #: 102485

Learn More

$15.42

Elkay 56118C Drain Gasket (Discontinued)

Item #: 102488

Learn More

$0.00

Out of stock

Elkay 98900C Drain Kit - for EZTL Dual-Station RIGHT Unit

Item #: 162840

Learn More

$46.25

Elkay 75580C Bubbler Kit Nut (Discontinued)

Item #: 106824

Learn More

$0.00

Out of stock

Elkay 66654C REG. ASSY - W/RED INTRNL SPRIN

Item #: 136542

Learn More

$39.40

Elkay 56092C Drinking Fountain Plastic Tubing 1/4" x 48"

Item #: 102487

Learn More

$15.40

Elkay 56213C Panel-Access

Item #: 136365

Learn More

$8.80

Elkay 75740C SCREW-#10-16 X .75 THSM (Discontinued)

Item #: 160424

Learn More

$3.83

Out of stock

Elkay 30664C Fan Blade (Discontinued)

Item #: 106616

Learn More

$12.89

Out of stock

17-19 &21

Elkay 98775C Fan Motor Assembly Kit

Item #: 162844

Learn More

$99.99

Elkay 70018C Nut - Hex 1/4 - 20 (Discontinued)

Item #: 106370

Learn More

$3.83

Out of stock

Elkay 31490C Fan Motor (Discontinued)

Item #: 102518

Learn More

$0.00

Out of stock

Elkay 70009C Exp-Screw Furn w/AL Motor

Item #: 106633

Learn More

$7.22

Out of stock

Elkay 66723C ASSY -TUBE EVAP TO BASE

Item #: 136568

Learn More

$19.61

Out of stock

Elkay 56237C Shroud-Fan (Discontinued)

Item #: 136367

Learn More

$0.00

Out of stock

Elkay 40322C Stream Breaker

Item #: 102823

Learn More

$15.40

Elkay 50171C ORING-.364ID X .070 (Discontinued)

Item #: 136257

Learn More

$0.00

Out of stock

Elkay 50314C Flow Straightner (Discontinued)

Item #: 107844

Learn More

$0.00

Out of stock

25--26

Elkay 98776C Condenser/Drier Kit

Item #: 162845

Learn More

$89.22

Elkay 66743C Condenser (Discontinued)

Item #: 133604

Learn More

$0.00

Out of stock

Elkay 66703C DRIER-134A (Discontinued)

Item #: 136559

Learn More

$0.00

Out of stock

Elkay 10-15161-43-550 Stud (Discontinued)

Item #: 110862

Learn More

$6.13

Out of stock

Elkay 10-08067-40-570 Grommet (Discontinued)

Item #: 110863

Learn More

$0.00

Out of stock

Elkay 19037000 Clip (Discontinued)

Item #: 110864

Learn More

$0.00

Out of stock

Elkay 36322C Compressor with Overload and Relay

Item #: 162634

Learn More

$373.50

31,32, 42

Elkay 98535C Overload, Relay and Cover Kit - 115V

Item #: 140041

Learn More

$41.37

Elkay 35959C Relay (Discontinued)

Item #: 102705

Learn More

$0.00

Out of stock

Elkay 35768C Cover Relay (Discontinued)

Item #: 129695

Learn More

$0.00

Out of stock

Elkay 66576C HEATX-BARRIER FREE (Discontinued)

Item #: 136522

Learn More

$0.00

Out of stock

Elkay 70444C Hose Clamp

Item #: 106091

Learn More

$1.90

Out of stock

Elkay 55001109 Basin - Stainless Steel

Item #: 106280

Learn More

$162.90

Elkay 31513C Cold Control Thermostat

Item #: 102467

Learn More

$43.20

Elkay 98724C Evaporator Replacement Kit

Item #: 151228

Learn More

$296.10

Elkay 70002C Screw

Item #: 102509

Learn More

$4.15

Elkay 56011C Bubbler Guard (Discontinued)

Item #: 107210

Learn More

$16.45

Out of stock

Elkay 55997C Pedestal (Discontinued)

Item #: 107133

Learn More

$0.00

Out of stock

Elkay 36158C Overload 115V (Discontinued)

Item #: 106323

Learn More

$0.00

Out of stock

Elkay 28401C Wall Hanger Bracket

Item #: 102657

Learn More

$24.75

Elkay 56082C Cartridge Hold Open Nut (Discontinued)

Item #: 102660

Learn More

$0.00

Out of stock

45 (23,40,41)

Elkay 92715C Flexi-Guard Bubbler Head Kit

Item #: 102494

Learn More

$37.80

Elkay 36247C Solenoid - (No Nut, No Regulator)

Item #: 133486

Learn More

$68.06

Out of stock

Elkay 0000001192 Flat Black Gasket

Item #: 102517

Learn More

$12.60

Halsey Taylor 97446C Vandal Resistant Bubbler Kit

Item #: 130869

Learn More

$156.60

Elkay 15009C Bubbler Head Nipple

Item #: 102461

Learn More

$50.40

Out of stock

Elkay 98169C Solenoid Kit (cap, screen, and o-ring)

Item #: 106136

Learn More

$31.25

Elkay 51294C Filter Housing Head

Item #: 102511

Learn More

$39.14

Out of stock

Elkay 70792C Screw

Item #: 107324

Learn More

$6.60

Elkay 70823C Fitting - Superseal 3/8(10mm)

Item #: 106622

Learn More

$15.00

Elkay 98532C Tubing, O-Ring & Fitting Kit

Item #: 140038

Learn More

$81.90

Elkay 51299C Drinking Fountain Replacement Filter (1500 Gallons)

Item #: 102502

Learn More

$94.17

Elkay 70818C Elbow Fitting 3/8 Stem 3/8 Tube

Item #: 102880

Learn More

$27.50

Elkay 22490C BRKT -FILTER MOUNTING

Item #: 135271

Learn More

$32.50

More Information

Manufacturer	Elkay
Model #	EZF(S).C
Manufacturer Part #	EZF(S).C
