Elkay EZ(S)TL Parts Breakdown

Breakdown for models: EZF(S)TL8_1, EZF(S)TLR8_1, EZF(S)TLVR8_1, LZF(S)TL8_1, EZF(S)TL8_2JO

In stock

SKU: breakdown-EZ(S)TL

How to use this page:

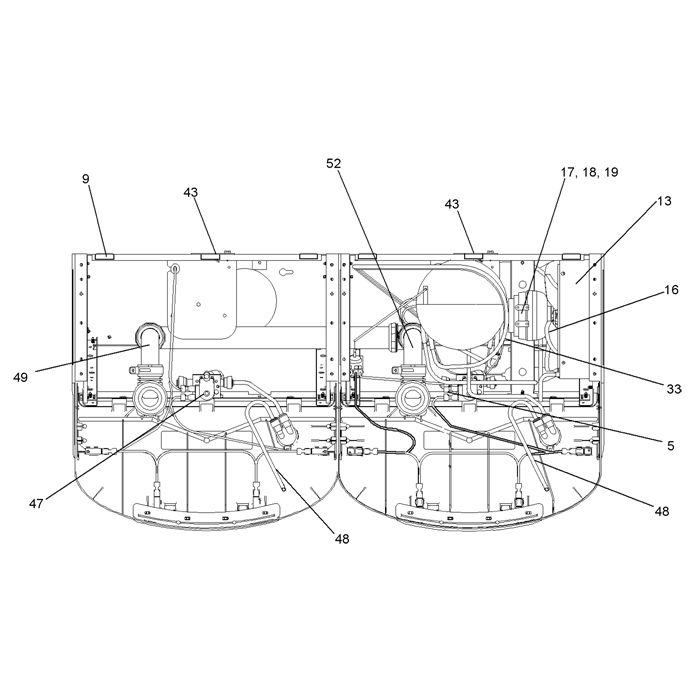

1. Identify the part(s) you need in the image.

2. Look for the corresponding "Item #" in the list below.

3. Add item to cart

-or-

4. Click on the item to view more details

Item #


Part Details

Price

Qty

Elkay 98898C EZ Hardware Kit

Item #: 162848

Learn More

$21.00

Elkay 56228C Upper Shroud (without Buttons)

Item #: 102675

Learn More

$63.00

Elkay 35948C Push Bar Switch (Discontinued)

Item #: 102468

Learn More

$0.00

Out of stock

Elkay 35949C WIRING-HARNESS

Item #: 135993

Learn More

$32.71

Out of stock

Elkay 36089C Wiring - Harness

Item #: 107379

Learn More

$19.11

Elkay 36004C Jumper Wire

Item #: 107038

Learn More

$12.26

Elkay 56002C EZ-Series Drinking Fountain Side Pushbar

Item #: 102485

Learn More

$15.42

Elkay 56074C Push-Filler Side (Discontinued)

Item #: 106708

Learn More

$0.00

Out of stock

Elkay 56071C Drain (Discontinued)

Item #: 151206

Learn More

$0.00

Out of stock

Elkay 97970C Drain Fitting - for EZ/LZ Single Station

Item #: 106982

Learn More

$48.60

Elkay 50129C BUMPR-CORK/RUBBER (Discontinued)

Item #: 136254

Learn More

$4.99

Out of stock

10b

Elkay 70012C Lock Nut

Item #: 102822

Learn More

$21.00

10a

Elkay 75580C Bubbler Kit Nut (Discontinued)

Item #: 106824

Learn More

$0.00

Out of stock

11-12 & 45

Elkay 1000001913 Green Spring Kit with Hold Open Nut

Item #: 163226

Learn More

$61.20

Elkay 61314C Valve Regulator Cartridge (Green Spring)

Item #: 102539

Learn More

$40.83

Elkay Cartridge Holder 50986C

Item #: 102478

Learn More

$43.75

Elkay 27846C SHRD-TOP FAN EZ (Discontinued)

Item #: 135596

Learn More

$11.11

Out of stock

Elkay 27847C SHRD-BOTTOM FAN EZ (Discontinued)

Item #: 135597

Learn More

$19.48

Out of stock

15b

Elkay 35980C EZ Power Cord

Item #: 136006

Learn More

$48.60

15a

Elkay 35978C CORD -POWER 115V

Item #: 136005

Learn More

$23.89

Elkay 30664C Fan Blade (Discontinued)

Item #: 106616

Learn More

$12.89

Out of stock

17-19

Elkay 98775C Fan Motor Assembly Kit

Item #: 162844

Learn More

$99.99

Elkay 70018C Nut - Hex 1/4 - 20 (Discontinued)

Item #: 106370

Learn More

$3.83

Out of stock

Elkay 31490C Fan Motor (Discontinued)

Item #: 102518

Learn More

$0.00

Out of stock

Elkay 70009C Exp-Screw Furn w/AL Motor

Item #: 106633

Learn More

$7.22

Out of stock

Elkay 75583C John Guest Elbow 1/4" x 5/16"

Item #: 102774

Learn More

$40.50

21a

Elkay 27854C Panel Wrapper TL-L-EZ (Discontinued)

Item #: 107200

Learn More

$0.00

Out of stock

21b

Elkay 27852C Panel-Wrapper Left (Discontinued)

Item #: 106848

Learn More

$0.00

Out of stock

21a

Elkay 1000000944 Panel Wrapper-Light Grey (RH)

Item #: 163709

Learn More

$113.40

Elkay 40322C Stream Breaker

Item #: 102823

Learn More

$15.40

Elkay 50171C ORING-.364ID X .070 (Discontinued)

Item #: 136257

Learn More

$0.00

Out of stock

Elkay 50314C Flow Straightner (Discontinued)

Item #: 107844

Learn More

$0.00

Out of stock

25-26

Elkay 98776C Condenser/Drier Kit

Item #: 162845

Learn More

$89.22

Elkay 66743C Condenser (Discontinued)

Item #: 133604

Learn More

$0.00

Out of stock

Elkay 66202C Drier

Item #: 106303

Learn More

$30.00

Elkay 10-15161-43-550 Stud (Discontinued)

Item #: 110862

Learn More

$6.13

Out of stock

Elkay 10-08067-40-570 Grommet (Discontinued)

Item #: 110863

Learn More

$0.00

Out of stock

Elkay 19037000 Clip (Discontinued)

Item #: 110864

Learn More

$0.00

Out of stock

Elkay 36086C Compressor, Service Pak 115V (Discontinued)

Item #: 106102

Learn More

$0.00

Out of stock

Elkay 36167C Relay (Discontinued)

Item #: 102715

Learn More

$0.00

Out of stock

31-32

Elkay 98535C Overload, Relay and Cover Kit - 115V

Item #: 140041

Learn More

$41.37

Elkay 35768C Cover Relay (Discontinued)

Item #: 129695

Learn More

$0.00

Out of stock

Elkay 66576C HEATX-BARRIER FREE (Discontinued)

Item #: 136522

Learn More

$0.00

Out of stock

Elkay 75584C CLAMP-5/16

Item #: 136682

Learn More

$15.59

Elkay 55001109 Basin - Stainless Steel

Item #: 106280

Learn More

$162.90

Elkay 31513C Cold Control Thermostat

Item #: 102467

Learn More

$43.20

Elkay 98724C Evaporator Replacement Kit

Item #: 151228

Learn More

$296.10

Elkay Screw 8PK

Item #: 166728

Learn More

$18.00

Out of stock

Elkay 56011C Bubbler Guard (Discontinued)

Item #: 107210

Learn More

$16.45

Out of stock

Elkay 55997C Pedestal (Discontinued)

Item #: 107133

Learn More

$0.00

Out of stock

Elkay 27965C BRKT -HANGER EZ

Item #: 135621

Learn More

$26.83

Out of stock

Elkay 75740C SCREW-#10-16 X .75 THSM (Discontinued)

Item #: 160424

Learn More

$3.83

Out of stock

Elkay 56082C Cartridge Hold Open Nut (Discontinued)

Item #: 102660

Learn More

$0.00

Out of stock

46 (10a, 23, 40 &41)

Elkay 92715C Flexi-Guard Bubbler Head Kit

Item #: 102494

Learn More

$37.80

Elkay 35981C Drinking Fountain Solenoid Valve

Item #: 102469

Learn More

$104.41

Elkay 56092C Drinking Fountain Plastic Tubing 1/4" x 48"

Item #: 102487

Learn More

$15.40

Elkay 45874C ASSY-DRAIN-EZ UNV BL

Item #: 136244

Learn More

$38.78

Out of stock

Elkay 55994C TUBE -POLY 1/4X.040 WALL

Item #: 136327

Learn More

$8.33

Elkay 70682C John Guest Tee Coupling 1/4" x 1/4" x 1/4"

Item #: 102492

Learn More

$28.50

Elkay 0000001192 Flat Black Gasket

Item #: 102517

Learn More

$12.60

Elkay 45866C Vandal-Resistant Bubbler, Short

Item #: 136243

Learn More

$142.20

Elkay 56159C Plastic 1/4" Bubbler Nipple

Item #: 102846

Learn More

$50.40

Elkay 51294C Filter Housing Head

Item #: 102511

Learn More

$39.14

Out of stock

Elkay 70792C Screw

Item #: 107324

Learn More

$6.60

Elkay 70823C Fitting - Superseal 3/8(10mm)

Item #: 106622

Learn More

$15.00

Elkay 98532C Tubing, O-Ring & Fitting Kit

Item #: 140038

Learn More

$81.90

Elkay 51299C Drinking Fountain Replacement Filter (1500 Gallons)

Item #: 102502

Learn More

$94.17

Elkay 70818C Elbow Fitting 3/8 Stem 3/8 Tube

Item #: 102880

Learn More

$27.50

Elkay 22490C BRKT -FILTER MOUNTING

Item #: 135271

Learn More

$32.50
