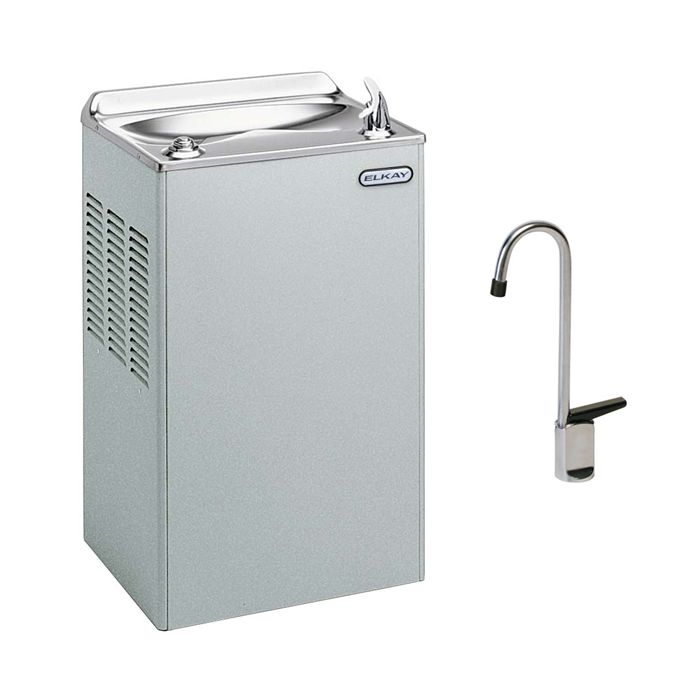

Elkay EWA20LF1Y Deluxe Wall Mount Water Cooler w/ LK1110 Glass Filler (Discontinued)

h3. GENERAL * Self-contained, electric refrigerated, wall hung water cooler w/ LK1110 glass filler * Capacity of 50°F drinking water, based upon 80°F inlet water and 90°F ambient * Non-pressurized tank system is standard * Non-pressurized water tank is located after bubbler valve, so that tank is subject to line pressure only when valve button is pressed h3. NO LEAD DESIGN Elkay Water Cooler comply with the requirements of A.D.A. (Americans with Disabilities Act) when properly installed. Also meets the guidelines for children’s environments providing the floor to orifice height is 30” or less and proper clear floor space is provided for parallel approach. (Based on Architectural and Transportation Barriers Compliance Board final ruling.) Check Local and State Codes. Elkay Water Coolers are manufactured with a waterway system utilizing copper components and completely lead-free materials. These waterways have no lead because all lead materials, such as leaded brass, have been removed. All joints are brazed using silver solder only. No lead solder is permitted. A strainer with an easily cleanable screen is provided to allow trapping and convenient removal of waterborne particulate of 140 microns and larger prior to their entry into the water cooler. h3. COOLING SYSTEM * *Motor Compressor*: Hermetically sealed, reciprocating type, 115V, 60 Hz single phase. Sealed-in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug. * *Condenser*: Fan cooled, copper tube with aluminum fins. (EWA4 has steel tube with steel fins.) Fan motor is permanently lubricated. * *Cooling Unit*: Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam which meets Underwriters Laboratories Inc. requirements for self extinguishing material. * *Refrigerant Control*: Refrigerant HFC-134a is controlled by accurately calibrated capillary tube for positively trouble-free performance. Temperature Control: Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirement.
