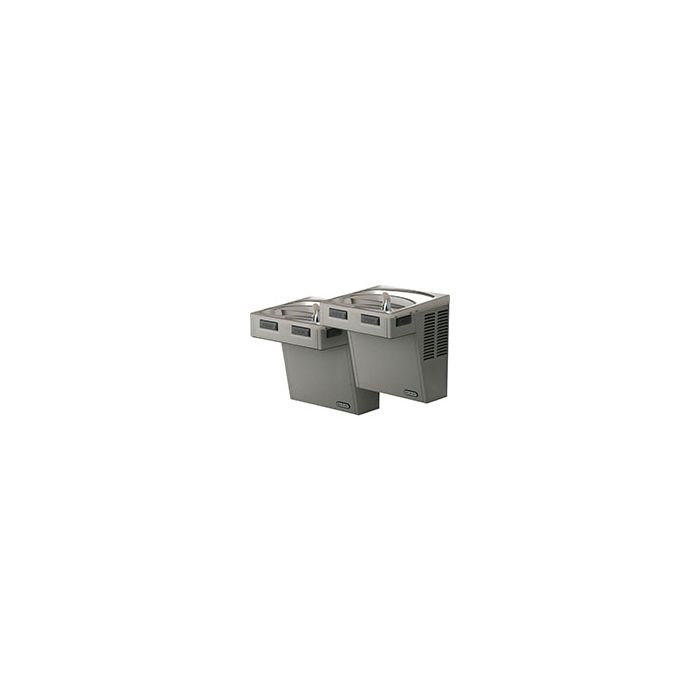

Elkay EMABFTLR8SC Stainless Steel Dual Drinking Fountain

* Self-contained, double wall hung electric refrigerated, water cooler * Capacity 8.0 GPH of 50°F drinking water, based upon 80°F inlet water and 90°F ambient * All models have a hooded stream projector with self closing push bars on front and both right and left sides * Flow regulator provides constant stream from 20 to 105 psi water pressure * Bubbler orifice fully protected to meet all sanitary codes *NOTE*: Minimum 40 psi supply line pressure required in special circumstances where both sides of bi-level are in use simultaneously to ensure adequate stream height. Does not apply to non-refrigerated units. h3. COOLING SYSTEM * *Motor Compressor*: Hermetically sealed, reciprocating type, 120 Volt/60 Hz, single phase. Sealed-in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug. * *Condenser*: Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated. * *Cooling Unit*: Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam which meets Underwriters Laboratories Inc. requirements for self extinguishing material. * *Refrigerant Control*: Refrigerant HFC-134a is controlled by accurately calibrated capillary tube for positively trouble-free operation. * *Temperature Control*: Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements. Easily accessible.
