Elkay EHFRAM7K Fully Recessed ADA Water Cooler

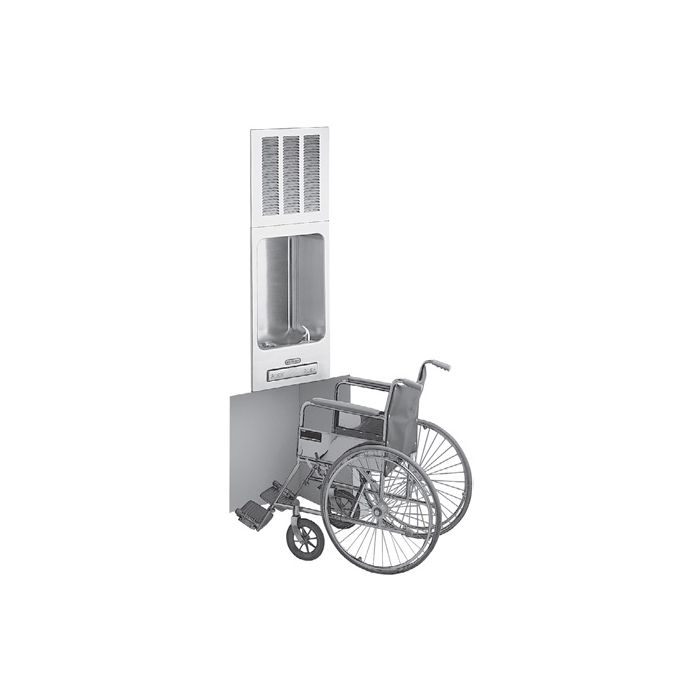

h3. ADA Compliant The Elkay EHFRAM7K water cooler complies with the requirements of A.D.A. (Americans with Disabilities Act) when properly installed. h3. No Lead Design The Elkay ehfram7k water cooler complies with the lead-free definition in the Safe Drinking Water Act of 1986 and Lead Contamination Control Act of 1988. Elkay Water Coolers are manufactured with a waterway system utilizing copper components and completely lead-free material. These waterways have no lead because all lead materials, such as leaded brass, have been removed. All joints are brazed using silver solder only. No lead solder is permitted. A strainer with an easily cleanable screen is provided to allow trapping and convenient removal of waterborne particulate of 140 microns or larger prior to their entry into the water cooler. h3. Cooling System * *Motor Compressor:* Hermetically sealed, reciprocating type, 115V, 60 Hz single phase. Sealed-in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug. * *Condenser:* Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated. * *Cooling Unit:* Combination tube-tank type. Self Cleansing. Tube portion is continuous coil of copper tubing. Tank is stainless steel. Fully insulated with EPS foam which meets Underwriters Laboratories requirements for self extinguishing material. * *Refrigerant Control:* Refrigerant HFC-134a is controlled by accurately calibrated capillary tube for positively trouble-free performance. * *Temperature Control:* Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements. h3. Construction * *Fountain Body:* #16 gauge, type 304 nickel bearing stainless steel polished to a lustrous satin finish with high shined outer edge. Contoured basin offers large strike area to minimize splashing. Support arms incorporate unique recess to accept basins. Fully functional stainless steel push bars are easy to operate and have raised letters to aid visually impaired. Bottom cover plate is vandal-resistant. * *Exclusive Flexi-Guard® Safety Bubbler:* Innovative design utilizes a pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact, then returns to original position. Strong. Abrasion-resistant. Anti-sweat. Keyed in location to prevent rotation. * *Front Panel Grill:* Made of type 304 stainless steel, polished to a uniform Elkay satin finish. Removable louvered ventilating grille encloses refrigeration unit and plumbing. * *Wall Mounting Box:* MB30 furnished with each unit. Box allows flush mounting to finished wall, plumbing and electrical service holes are pre-punched on both right and left side to facilitate installation. *5 YEAR LIMITED WARRANTY* on the refrigeration system of the unit. Electrical components and water system are warranted for 12 months from date of installation. Sample Certificate available on request. Elkay Pressure-Type Water Coolers are designed to operate on 20 psi to 105 psi supply line pressure. If inlet pressure is above 105 psi, a pressure regulator must be installed in the supply line. Any damage caused by reason of connecting this product to supply line pressures lower than 20 psi or higher than 105 psi is not covered by the warranty.
