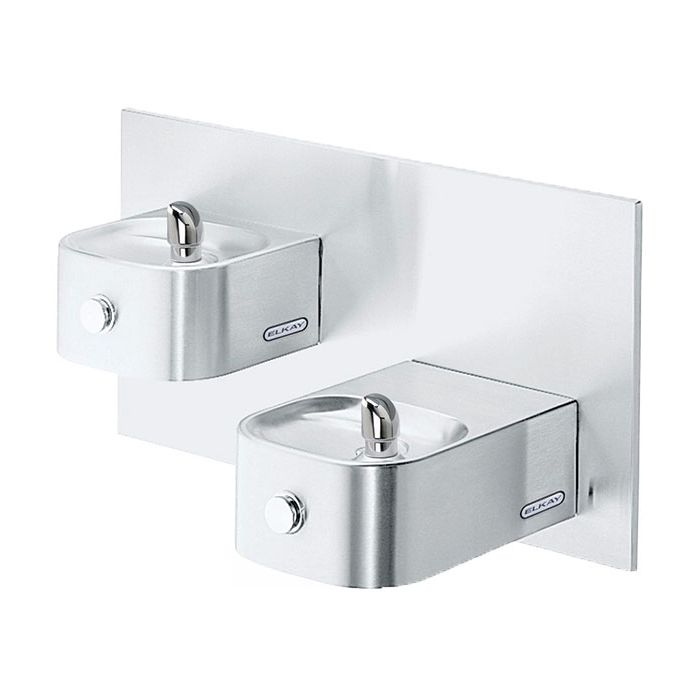

Elkay EDFP217FPK Freeze Resistant NON-REFRIGERATED In-Wall Dual Drinking Fountain with Vandal-Resistant Bubbler

h3. GENERAL Two-level wall mounted freeze-resistant drinking fountain for all weather applications. Constructed of #18 gauge, type 304, stainless steel polished to a satin finish. Includes two freezeresistant boxes, LKFRB1, to be mounted on interior heated wall where the temperature does not drop below 50°F (10°C). Contoured basins minimize splashing with vandal-resistant bubblers keyed into position to prevent rotation. Heavy-duty push-button controls are vandal-resistant. h3. ADA COMPLIANT THIS DRINKING FOUNTAIN COMPLIES WITH THE REQUIREMENTS OF A.D.A. (AMERICANS WITH DISABILITIES ACT) WHEN PROPERLY INSTALLED. UNIT IS COMPLIANT IF INSTALLED IN AN ALCOVE AND IS ALSO COMPLIANT WHEN MOUNTED ON AN EXPOSED WALL IF A WING WALL IS LOCATED ON THE LEFT SIDE OR IF A 97258C APRON IS INSTALLED UNDER THE UPPER UNIT. h3. NO LEAD DESIGN THIS DRINKING FOUNTAIN COMPLIES WITH THE LEADFREE DEFINITION IN THE SAFE DRINKING WATER ACT OF 1986 AND LEAD CONTAMINATION CONTROL ACT OF 1988. Elkay Drinking Fountains are manufactured with a waterway system utilizing copper components and completely lead-free material. These waterways have no lead because all leaded materials, such as leaded brass, have been removed. This fountain is certified by WQA to lead-free compliance including NSF/ANSI 61-ANNEX G, AB 1953. h3. ACCESSORIES * MP20 Surface mounting plate. * MPW200 In-wall carrier mounting plate. * ML100 Support columns for MPW200. h3. CONSTRUCTION *EDFP217FPK* furnished complete with vandal-resistant bubblers, heavy-duty push-buttons and vandal-resistant bottom cover plates. LKFRB1 includes boxes with separate front louvered panels. Flow regulator provides constant stream from 20 to 105 psi water pressure. Operated by adjustable cable system. Traps and drain tubes included for proper installation. Two boxes are required.
