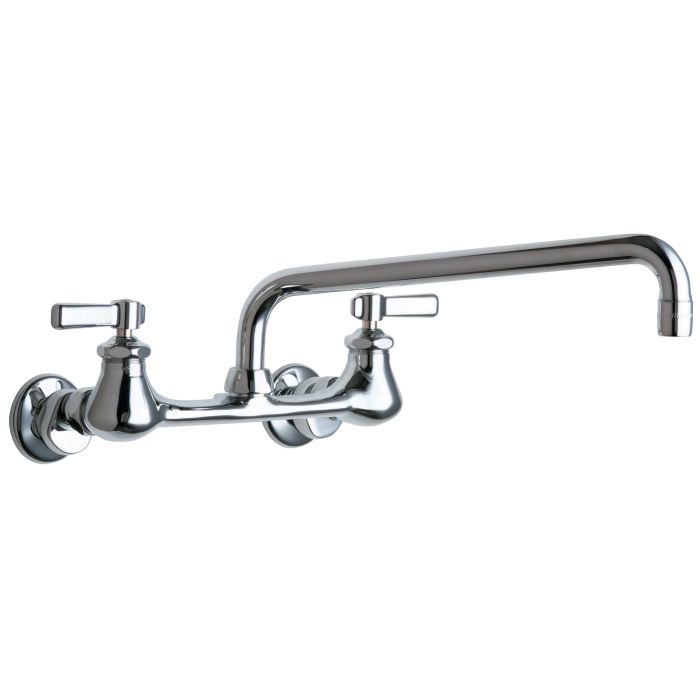

Chicago 540-LDL12CP Wall Mount Faucet (Discontinued)

Chicago Faucets No. 540-LDL12CP, polished chrome plated solid cast brass construction. 12" C-C swing spout with pail hook and 2.2 GPM pressure compensating aerator outlet. 2-3/8" metal lever handles with eight-point tapered broach and secured, color-coded index buttons. Quaturn™ quarter turn renewable compression cartridge designed to close with water pressure, with square tapered broach feature to help facilitate handle removal. Straight inlet supply arms on 8" centers. This product meets ADA requirements and is tested and certified to ASME A112.18.1 and CSA B125 industry standards. h3. Product Type Sink Faucet h3. Features & Specifications * 12" C-C Swing Spout * 2.2 GPM (8.3 L/min) Pressure Compensating Softflo® Aerator * 2 3/8" Metal Lever Handles with Secured Red and Blue Service Buttons * Quaturn™ Operating Cartridges * 3/8" Offset Adjustable Supply Arms with 1/2" NPT Female Thread Inlet h3. Performance Specification * Rating Operating Pressure: 20-125 PSI * Rated Operating Temperature: 40-140°F h3. Warranty * Lifetime Limited Faucet Warranty * 5-Year Limited Cartridge Warranty * 1-Year Limited Finish Warranty h3. Compliant To * ASME A112.18.1M * CSA B125.1 * NSF 61, Section 9 * ADA ANSI/ICC A117.1
