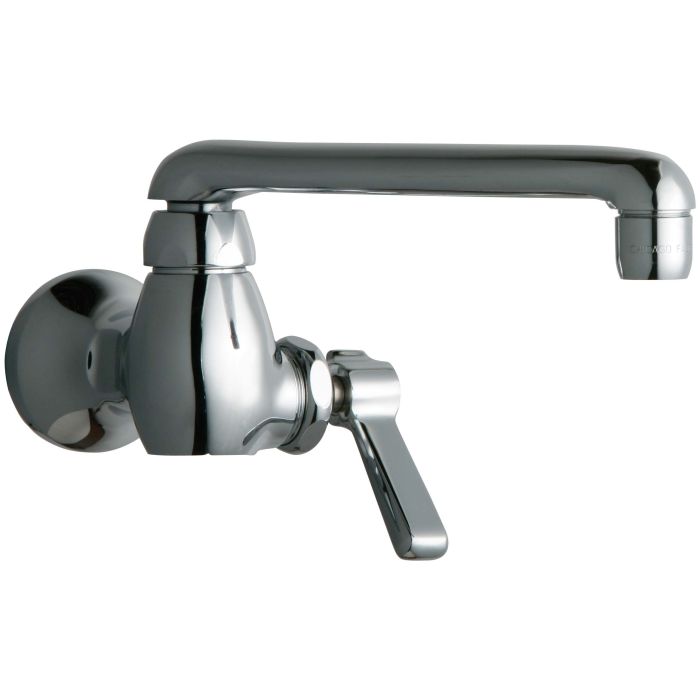

Chicago 332-CP Single Water Inlet Faucet (Discontinued)

Chicago Faucets No. 332-CP, Polished chrome plated solid brass construction with integral shank. 6" cast swing spout. 2.2 GPM pressure compensating aerator outlet, 2 3/8" metal lever handle with eight point tapered broach and secured color coded blue index button. Quaturn™ quarter-turn renewable compression cartridge designed to close with water pressure with square tapered broach feature to help facilitate handle removal. 1/2" NPT female inlet with integral wall flange. This product meets ADA requirements and is tested and certified to industry standards: ASME A112.18.1, NSF 61, Sec. 9 and CSA B125. h3. PRODUCT TYPE Wall mounted single water inlet faucet h3. FEATURES & SPECIFICATIONS * Polished chrome plated finish * Solid brass body construction * Single water inlet * 6" cast swing spout, catalog #S6 * 2.2 GPM (8.3 L/min) pressure compensating aerator outlet, catalog #E3 * 2 3/8" Metal lever handle with eight point tapered broach and secured color coded blue index button, catalog #369 * Quaturn™ quarter-turn renewable compression cartridge that close with water pressure with tapered square broach to facilitate handle removal, catalog #1-099XT * 1/2" NPT female inlet with integral wall flange h3. PERFORMANCE SPECIFICATION * Rated Operating Pressure: 20-125 PSI * Rated Operating Temperature: 40-140° F h3. WARRANTY * Lifetime Limited Faucet Warranty * 5-Year Limited Cartridge Warranty * 1-Year Limited Finish Warranty h3. COMPLIANT TO * ASME A112.18.1 * NSF 61, Sec. 9 * CSA B125 * ADA
