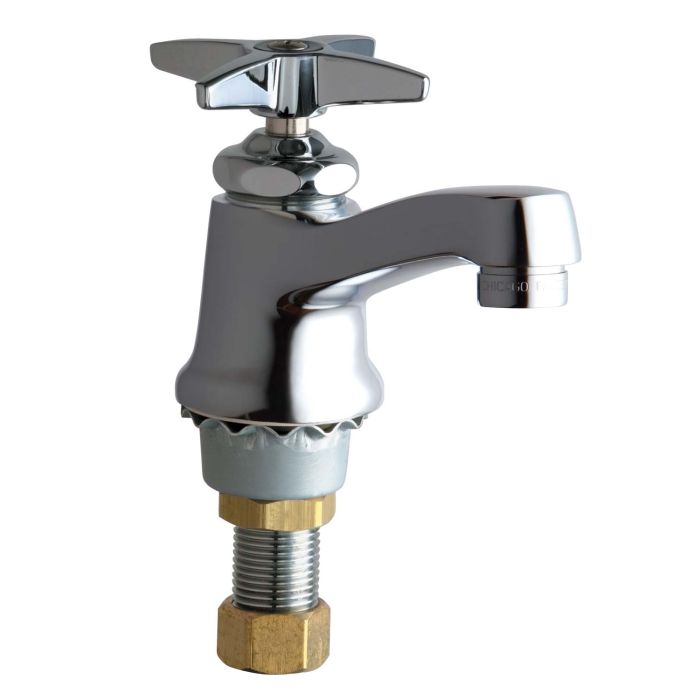

Chicago 700-COLDCP Single Lavatory Faucet (Discontinued)

Chicago Faucets No. 700-COLDCP, Polished chrome plated solid cast brass body construction with integral 3 3/8" C-C spout and integral inlet shank. 2.2 GPM pressure compensating aerator outlet. Cross metal handle with color coded index button. Quaturn™ quarter-turn renewable compression cartridge designed to close with water pressure with square tapered broach feature to help facilitate handle removal. Inlet shank contains standard 1/2" NPSM threaded inlet with coupling nut for connection to 3/8" or 1/2" standard lavatory riser. All mounting hardware is included for standard lavatory installations. This product is tested and certified to industry standards: ASME A112.18.1, NSF 61, Sec. 9 and CSA B125. h3. PRODUCT TYPE Deck mounted single water inlet faucet h3. FEATURES & SPECIFICATIONS * Polished chrome plated finish * Solid brass body construction * Single water inlet * 3 3/8" C-C Integral spout * 2.2 GPM (8.3 L/min) pressure compensating aerator outlet, catalog #E12 * Cross metal handle with eight point tapered broach and secured color coded blue index button, catalog #633 * Quaturn™ quarter-turn renewable compression cartridge that close with water pressure with tapered square broach to facilitate handle removal, catalog #1-100XT * 1/2" NPSM supply inlet with coupling nut for 3/8" or 1/2" flexible riser * Mounting hardware included h3. PERFORMANCE SPECIFICATION * Rated Operating Pressure: 20-125 PSI * Rated Operating Temperature: 40-140° F h3. WARRANTY * Lifetime Limited Faucet Warranty * 5-Year Limited Cartridge Warranty * 1-Year Limited Finish Warranty h3. COMPLIANT TO * ASME A112.18.1 * NSF 61, Sec. 9 * CSA B125
