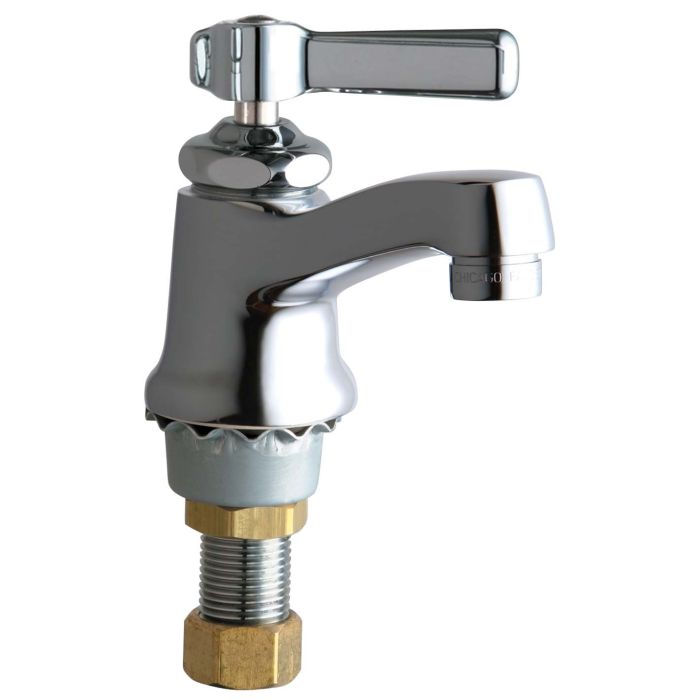

Chicago 730-COLDCP Single Lavatory Faucet (Discontinued)

Chicago Faucets No. 730-COLDCP, Polished chrome plated solid cast brass body construction with integral 3 3/8" C-C spout and integral inlet shank. 2.2 GPM pressure compensating aerator outlet. 2 3/8" lever handle with eight point tapered broach. Quaturn™ quarter-turn renewable compression cartridge designed to close with water pressure with square tapered broach feature to help facilitate handle removal. Inlet shank contains standard 1/2" NPSM threaded inlet with coupling nut for connection to 3/8" or 1/2" standard lavatory riser. All mounting hardware is included for standard lavatoryinstallations. This product is tested and certified to industry standards: ASME A112.18.1 and CSA B125. h3. PRODUCT TYPE Angle urinal valve h3. FEATURES & SPECIFICATIONS * Polished chrome plated finish * Solid brass body construction * Single water inlet * 3 3/8" C-C Integral spout * 2.2 GPM (8.3 L/min) pressure compensating aerator outlet, catalog #E12 * 2 3/8" Lever handle with secured color coded blue index button, catalog #369 * Quaturn™ quarter-turn renewable compression cartridge that closes with water pressure with tapered square broach to facilitate handle removal, catalog #1-099XT * 1/2" NPSM supply inlet with coupling nut for 3/8" or 1/2" flexible riser * Mounting hardware included h3. PERFORMANCE SPECIFICATION * Rated Operating Pressure: 20-125 PSI * Rated Operating Temperature: 40-140°F h3. WARRANTY * Lifetime Limited Faucet Warranty * 5-Year Limited Cartridge Warranty * 1-Year Limited Finish Warranty h3. COMPLIANT TO * ASME A112.18.1M * CSA B125
