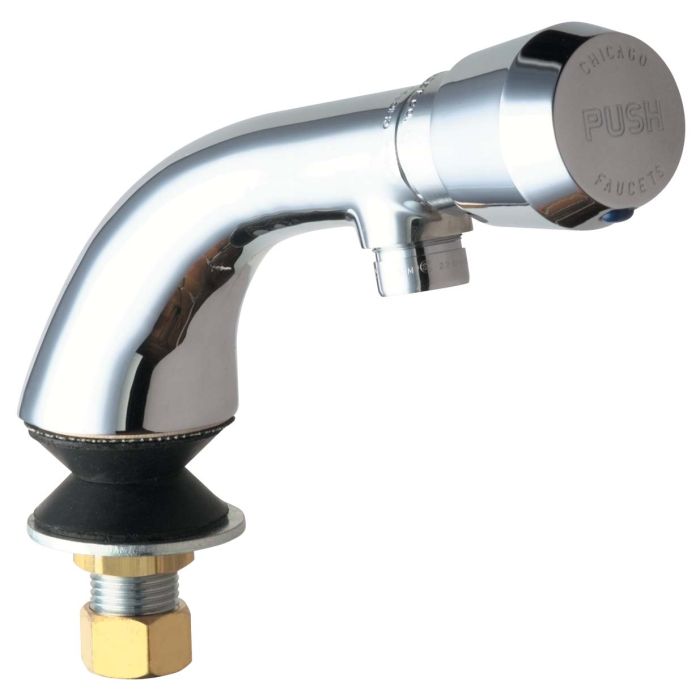

Chicago 807-E12-665PSHCP Metering Faucet (Discontinued)

Chicago Faucets No. 807-E12-665PSHCP, Polished chrome plated solid cast brass body construction with integral 4 1/8" C-C spout. 2.2 GPM pressure compensating aerator outlet. MVP™ tapered metering handle with push button, 0.25 gal/cycle self closing metering cartridge. Inlet shank contains standard 1/2" NPSM threaded inlet with coupling nut for connection to 3/8" or 1/2" standard flexible riser. Mounting hardware included. This product meets ADA requirements and is tested and certified to industry standards: ASME A112.18.1, NSF 61, Sec. 9 and CSA B125. h3. Product Type Deck mounted single hole faucet h3. Features & Specifications * Polished chrome plated finish * Solid brass construction * 4 1/8" C-C Integral spout * 2.2 GPM (8.3 L/min) pressure compensating aerator outlet, catalog #E12 * Tapered metering handle with color coded index buttons, catalog #665 * MVP™ push button, self closing adjustable metering cartridge, catalog #671-X * 0.25 Gal/Cycle Max. * 1⁄2" NPSM supply inlets with coupling nuts for 3/8" or 1⁄2" flexible risers * Mounting hardware included h3. Performance Specification * rated operating Pressure: 20-125 PSI * rated operating Temperature: 40-140° F h3. Warranty * Lifetime Limited Faucet Warranty * 5-year Limited Cartridge Warranty * 1-year Limited Finish Warranty h3. Compliant To * ASME A112.18.1 * NSF 61, Sec. 9 * CSA B125 * ADA
