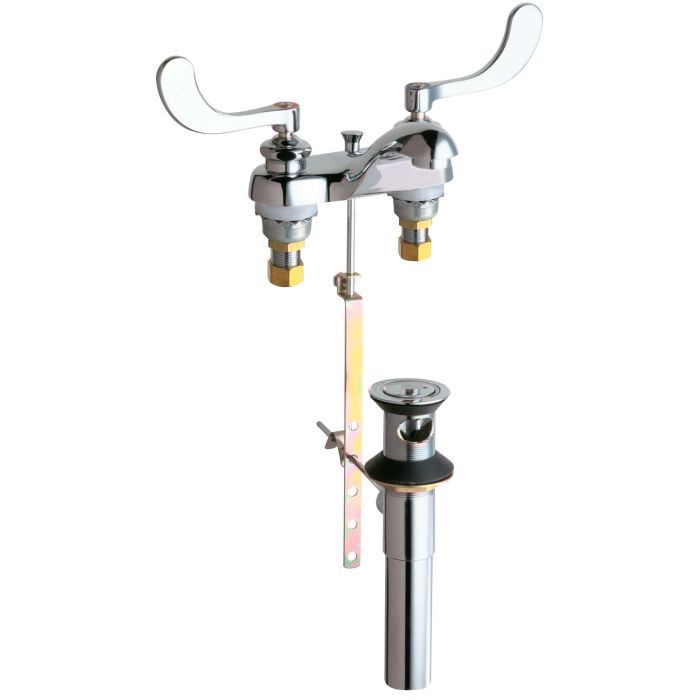

Chicago 797-317CP Lavatory Faucet w/ Pop-Up (Discontinued)

Chicago Faucets No. 797-317CP, Polished chrome plated solid cast brass body construction with integral 4" C-C spout and integral inlet shanks on 4" centers. 2.2 GPM pressure compensating aerator outlet. 4" Wristblade metal handles with eight point tapered broach, secured white index button. Quaturn™ quarter-turn renewable compression cartridge designed to close with water pressure with square tapered broach feature to help facilitate handle removal. Inlet shanks contain standard 1/2" NPSM threaded inlets with coupling nuts for connection to 3/8" or 1/2" standard flexible risers. Includes 1 1/4" pop-up waste. Mounting hardware included. This product meets ADA requirements and is tested and certified to industry standards: ASME A112.18.1, CSA B125 and NSF 61, section 9. h3. PRODUCT TYPE Deck mounted faucet with 4" integral spout h3. FEATURES & SPECIFICATIONS * Polished chrome plated finish * Solid brass body construction * 4" C-C Integral spout * 2.2 GPM (8.3 L/min) pressure compensating aerator outlet, catalog #E12 * 4" Wristblade metal handles with eight point broach and secured color coded index buttons, catalog #317 * Quaturn™ quarter-turn renewable compression cartridge that closes with water pressure with tapered square broach to facilitate handle removal, catalog #1-100XT and #1-099XT * 1⁄2" NPSM supply inlets with coupling nuts for 3/8" or 1⁄2" flexible risers * Mounting hardware included * 1 1/4" O.D. pop-up waste h3. PERFORMANCE SPECIFICATION * Rated Operating Pressure: 20-125 PSI * Rated Operating Temperature: 40-140° F h3. WARRANTY * Lifetime Limited Faucet Warranty * 5-Year Limited Cartridge Warranty * 1-Year Limited Finish Warranty h3. COMPLIANT TO * ASME A112.18.1M * NSF 61, Sec. 9 * CSA B125 * ADA
