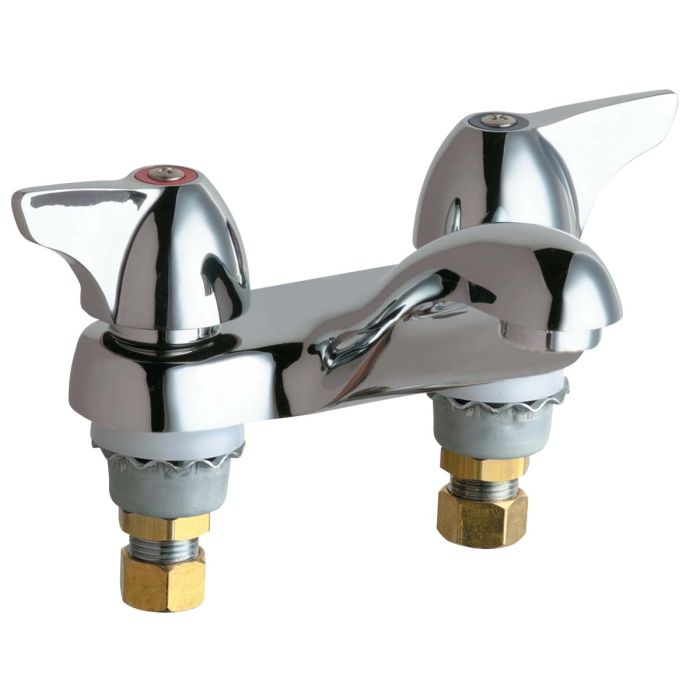

Chicago 802-1000CP Lavatory Faucet

Chicago Faucets No. 802-1000CP, polished chrome plated solid cast brass body construction with integral 4" C-C spout and integral inlet shanks on 4" centers. 2.2 GPM pressure compensating aerator outlet. 2" single wing metal handles with eight-point tapered broach and secured, color-coded index buttons. Quaturn™ quarter-turn renewable compression cartridge designed to close with water pressure, with square tapered broach feature to help facilitate handle removal. Inlet shanks contain standard 1/2" NPSM threaded inlets with coupling nuts for connection to 3/8" or 1/2" standard flexible risers. Mounting hardware included. This product meets ADA requirements and is tested and certified to industry standards: ASME A112.18.1, NSF 61 Sec. 9, and CSA B125. h3. Product Type Lavatory Faucet h3. Features & Specifications * 4" C-C Integral Cast Brass Spout * 2.2 GPM (8.3 L/min) Pressure Compensating Softflo® Aerator * 2" Metal Single Wing Canopy Handles with Secured Hot and Cold Service Buttons. * Quaturn™ Operating Cartridges * 1/2" NPSM Supply Inlets with Coupling Nut for 3/8" or 1/2" Flexible Riser h3. Performance Specification * Rating Operating Pressure: 20-125 PSI * Rated Operating Temperature: 40-140°F h3. Warranty * Lifetime Limited Faucet Warranty * 5-Year Limited Cartridge Warranty * 1-Year Limited Finish Warranty h3. Compliant To * ASME A112.18.1M * CSA B125.1 * NSF 61, Section 9 * ADA ANSI/ICC A117.1
