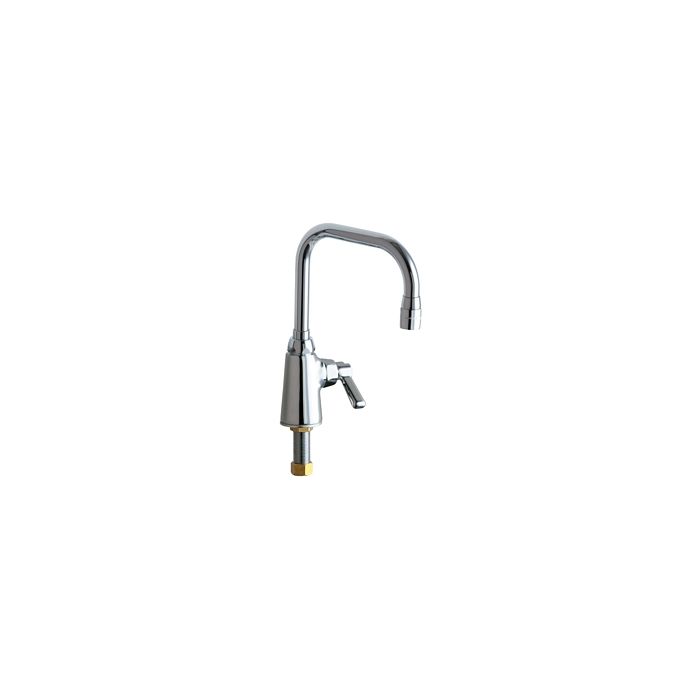

Chicago 350-DB6AE3ABCP Single Supply Faucet
h3. Product Type
Deck Mounted Single Supply Sink Faucet
h3. Features & Specifications
* Single Hole
* 6 1/4" Rigid / Swing Double Bend Spout
* 2.2 GPM (8.3 L/min) Aerator
* 2 3/8" Lever Handle
* Quaturn Compression Operating Cartridge
* 1/2" NPSM Supply Inlet with Coupling Nut for 3/8" or 1/2" Flexible Riser
* ECAST® design provides durable brass construction with total lead content equal to or less than 0.25% by weighted average
h3. Performance Specification
* Rating Operating Pressure: 20-125 PSI
* Rated Operating Temperature: 40-140ºF
h3. Warranty
* Lifetime Limited Faucet Warranty
* 5-Year Limited Cartridge Warranty
* 1-Year Limited Finish Warranty
h3. Codes & Standards
* ASME A112.18.1/CSA B125.1
* Certified to NSF/ANSI 61, Section 9 by CSA
* California Health and Safety Code 116875 (AB1953-2006)
* Vermont Bill S.152
* NSF/ANSI 372 Low Lead Content
* ADA ANSI/ICC A117.1
In stock
- SKU
- 134277
$272.57
Description / Chicago 350-DB6AE3ABCP Single Supply Faucet
h3. Product Type
Deck Mounted Single Supply Sink Faucet
h3. Features & Specifications
* Single Hole
* 6 1/4" Rigid / Swing Double Bend Spout
* 2.2 GPM (8.3 L/min) Aerator
* 2 3/8" Lever Handle
* Quaturn Compression Operating Cartridge
* 1/2" NPSM Supply Inlet with Coupling Nut for 3/8" or 1/2" Flexible Riser
* ECAST® design provides durable brass construction with total lead content equal to or less than 0.25% by weighted average
h3. Performance Specification
* Rating Operating Pressure: 20-125 PSI
* Rated Operating Temperature: 40-140ºF
h3. Warranty
* Lifetime Limited Faucet Warranty
* 5-Year Limited Cartridge Warranty
* 1-Year Limited Finish Warranty
h3. Codes & Standards
* ASME A112.18.1/CSA B125.1
* Certified to NSF/ANSI 61, Section 9 by CSA
* California Health and Safety Code 116875 (AB1953-2006)
* Vermont Bill S.152
* NSF/ANSI 372 Low Lead Content
* ADA ANSI/ICC A117.1
More Information
| Manufacturer | Chicago |
|---|---|
| Model # | 350-DB6AE3ABCP |
| Mount Type | Deck Mount |
| Mount Dimension | Single Hole |
| Mounting Holes | 1 |
| Aerator GPM Flow Rate | 2.2 GPM |
| Faucet Spout Reach | 6.25" |
| Faucet Handle Style | 2.5" Lever |
| Cartridge Type | Quaturn Compression |
| Height (inches) | 9.5 |
| Width | 2.0000 |
