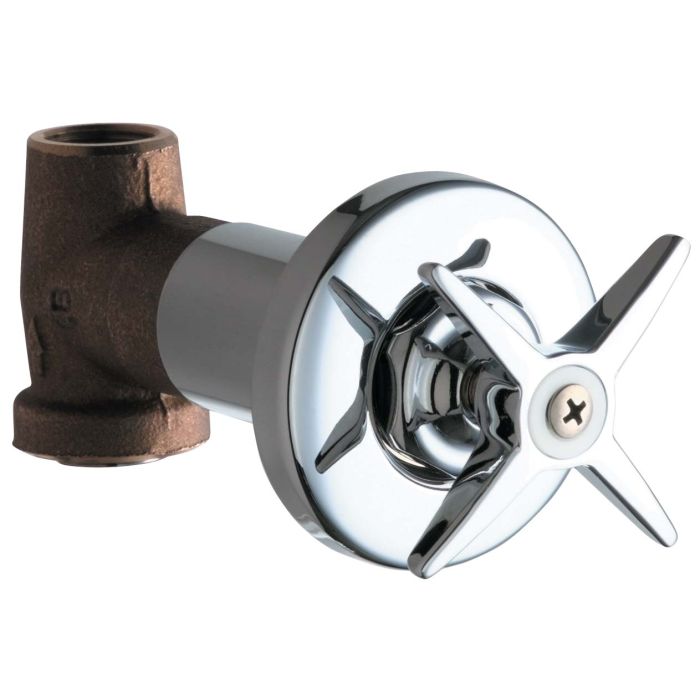

Chicago 770-PLCP Concealed Straight Valve (Discontinued)
Chicago Faucets No. 770-PLCP, polished chrome plated solid brass body. Cross metal handle with eight-point tapered broach, secured white index button. Slow compression renewable cartridge that closes with water pressure, with square tapered broach feature to help facilitate handle removal. 1/2" NPT female inlet and 1/2" NPT female outlet. Wall flange. This product is tested and certified to industry standards: ASME A112.18.1 and CSA B125.
h3. Product Type
Concealed In-Wall Straight Valve
h3. Features & Specifications
* 1/2" NPT Female Thread Outlet
* 3" Metal Cross Handle with Secured White Service Buttons
* Slow Compression Operating Cartridge
* 1/2" NPT Female Thread Inlet
h3. Performance Specification
* Rating Operating Pressure: 20-125 PSI
* Rated Operating Temperature: 40-140°F
h3. Warranty
* Lifetime Limited Faucet Warranty
* 5-Year Limited Cartridge Warranty
* 1-Year Limited Finish Warranty
h3. Compliant To
* ASME A112.18.1M
* CSA B125.1
Out of stock
- SKU
- 115375
$0.00
Description / Chicago 770-PLCP Concealed Straight Valve (Discontinued)
Chicago Faucets No. 770-PLCP, polished chrome plated solid brass body. Cross metal handle with eight-point tapered broach, secured white index button. Slow compression renewable cartridge that closes with water pressure, with square tapered broach feature to help facilitate handle removal. 1/2" NPT female inlet and 1/2" NPT female outlet. Wall flange. This product is tested and certified to industry standards: ASME A112.18.1 and CSA B125.
h3. Product Type
Concealed In-Wall Straight Valve
h3. Features & Specifications
* 1/2" NPT Female Thread Outlet
* 3" Metal Cross Handle with Secured White Service Buttons
* Slow Compression Operating Cartridge
* 1/2" NPT Female Thread Inlet
h3. Performance Specification
* Rating Operating Pressure: 20-125 PSI
* Rated Operating Temperature: 40-140°F
h3. Warranty
* Lifetime Limited Faucet Warranty
* 5-Year Limited Cartridge Warranty
* 1-Year Limited Finish Warranty
h3. Compliant To
* ASME A112.18.1M
* CSA B125.1
More Information
| Manufacturer | Chicago |
|---|---|
| Model # | 770-PLCP |
| Mount Dimension | Single Hole |
| Mounting Holes | 1 |
| Faucet Handle Style | Cross |
| Cartridge Type | Quaturn Compression |
| Width | 2.7500 |
