Chicago 770-317PLCP Concealed Straight Valve (Discontinued)

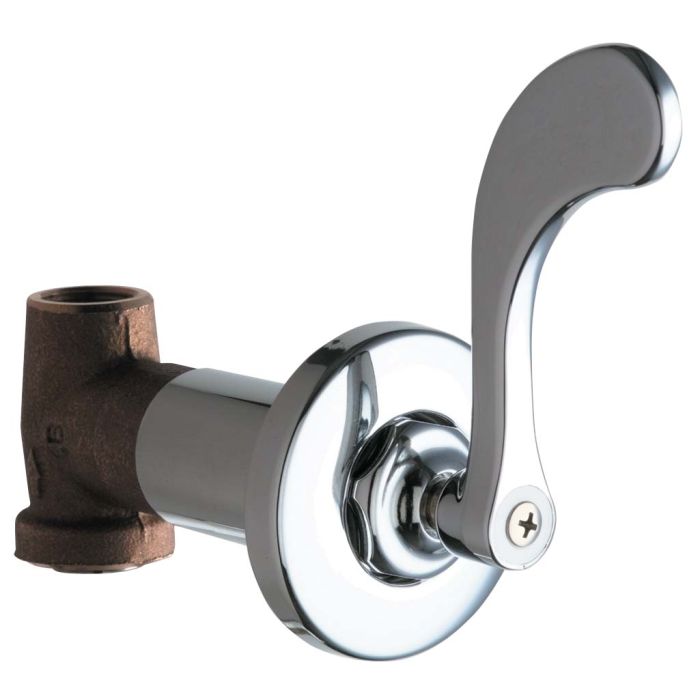

Chicago Faucets No. 770-317PLCP, polished chrome plated solid brass body. 4" wristblade metal handles with eight-point tapered broach, secured white index button. Slow compression renewable cartridge that closes with water pressure, with square tapered broach feature to help facilitate handle removal. 1/2" NPT female inlet and 1/2" NPT female outlet. Wall flange. This product meets ADA requirements and is tested and certified to industry standards: ASME A112.18.1 and CSA B125 h3. Product Type Concealed In-Wall Straight Valve h3. Features & Specifications * 1/2" NPT Female Thread Outlet * 4" Metal Wristblade Handle with Secured White Service Button * Slow Compression Operating Cartridge * 1/2" NPT Female Thread Inlet h3. Performance Specification * Rating Operating Pressure: 20-125 PSI * Rated Operating Temperature: 40-140°F h3. Warranty * Lifetime Limited Faucet Warranty * 5-Year Limited Cartridge Warranty * 1-Year Limited Finish Warranty h3. Compliant To * ASME A112.18.1M * CSA B125.1 * ADA ANSI/ICC A117.1
