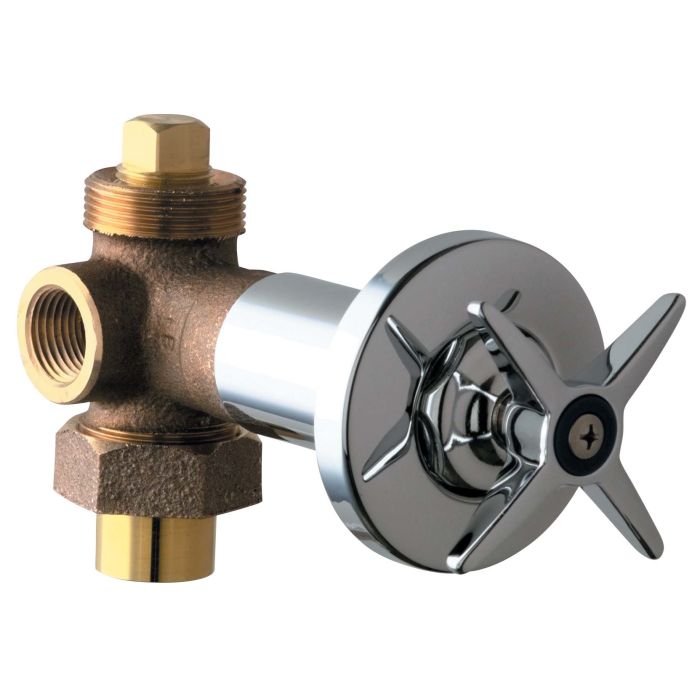

Chicago 769-COLDCP Concealed Angle Bypass Valve (Discontinued)

Chicago Faucets No. 769-COLDCP polished chrome plated solid brass construction. 3" metal cross handle(s) with eight point tapered broach and secured blue button. Slow compression rebuildable cartridge, opens and closes 360° for fine adjustment, closes with water pressure, features square tapered stem. Integral inlet shank(s) contains standard 1/2" NPT female thread union inlets. Mounting hardware included. This product is tested and certified to industry standards: ASME A112.18.1M, and CSA B125.1 h3. Product Type Remote Valves Mounted Cold Water Concealed Angle Valve h3. Features & Specifications * Concealed Angle Valve * 3" Cross Handle * Slow Compression Operating Cartridge * 1/2" NPT Female Thread Inlet * 1/2" NPT Female Thread Outlet h3. Performance Specification * Rating Operating Pressure: 20-125 PSI * Rated Operating Temperature: 40-140ºF h3. Warranty * Lifetime Limited Faucet Warranty * 5-Year Limited Cartridge Warranty * 1-Year Limited Finish Warranty h3. Codes & Standards * ASME A112.18.1 * CSA B125.1
