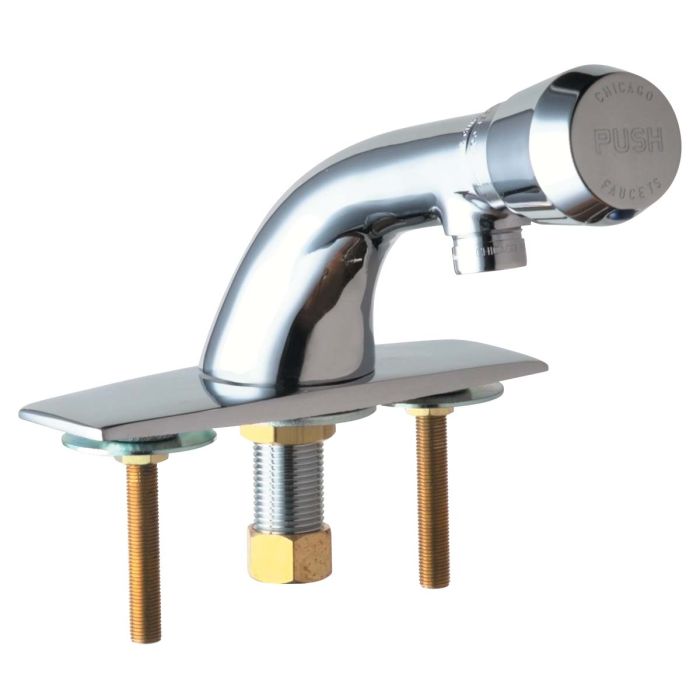

Chicago 857-E12-665PSHCP Lavatory Metering Faucet

Chicago Faucets No. 857-E12-665PSHCP, polished chrome plated solid cast brass body construction with 4-1/8" integral spout and 4" C-C deck cover plate. Integral inlet shanks on 4" centers. 2.2 GPM pressure compensating aerator outlet. Tapered vandal-resistant metering handle with color coded index button. MVP™ push button, 0.25 gal/cycle self-closing metering cartridge. Inlet shanks contain standard 1/2" NPSM threaded inlets with coupling nuts for connection to 3/8" or 1/2" standard flexible risers. Mounting hardware included. This product meets ADA requirements and is tested and certified to industry standards: ASME A112.18.1, NSF 61 Sec. 9, and CSA B125. h3. Product Type Lavatory Metering Sink Faucet h3. Features & Specifications * 4 1/8" C-C Integral Cast Brass Spout * 2.2 GPM (8.3 L/min) Pressure Compensating Softflo® Aerator * 1 3/4" Round MVP™ Metering Handle with Hot and Cold Index Buttons * MVP™ Metering Adjustable Self Closing Cartridge * 1/2" NPSM Supply Inlets with Coupling Nut for 3/8" or 1/2" Flexible Riser * 4" C-C Deck Cover Plate h3. Performance Specification * Rating Operating Pressure: 20-125 PSI * Rated Operating Temperature: 40-140°F h3. Warranty * Lifetime Limited Faucet Warranty * 5-Year Limited Cartridge Warranty * 1-Year Limited Finish Warranty h3. Compliant To * ASME A112.18.1M * CSA B125.1 * ADA ANSI/ICC A117.1
