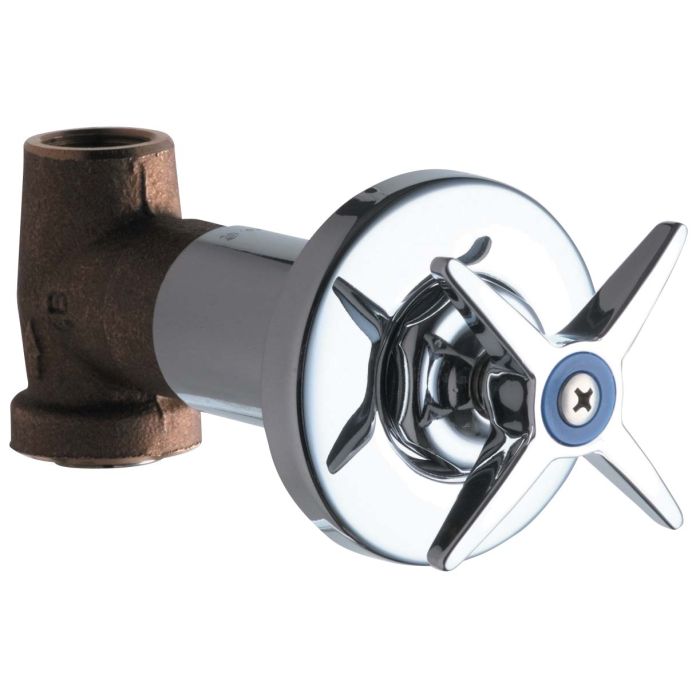

Chicago 770-COLDABCP Cold Water Concealed Straight Valve
calcActive())">
Chicago Faucets No. 770-COLDABCP, polished chrome plated solid brass body. Cross metal handles with eight-point tapered broach, secured, color-coded blue index button. Slow compression renewable cartridge that closes with water pressure, with square tapered broach feature to help facilitate handle removal. 1/2" NPT female inlet and 1/2" NPT female outlet. This product is tested and certified to industry standards: ASME A112.18.1 and CSA B125.
h3. Product Type
Concealed In-Wall Straight Valve
h3. Features & Specifications
* 1/2" NPT Female Thread Outlet
* 3" Metal Cross Handle with Secured Blue Service Buttons
* Slow Compression Operating Cartridge
* 1/2" NPT Female Thread Inlet
h3. Performance Specification
* Rating Operating Pressure: 20-125 PSI
* Rated Operating Temperature: 40-140°F
h3. Warranty
* Lifetime Limited Faucet Warranty
* 5-Year Limited Cartridge Warranty
* 1-Year Limited Finish Warranty
h3. Compliant To
* ASME A112.18.1M
* CSA B125.1
Out of stock
- SKU
- 161319
$156.65
Description / Chicago 770-COLDABCP Cold Water Concealed Straight Valve
Chicago Faucets No. 770-COLDABCP, polished chrome plated solid brass body. Cross metal handles with eight-point tapered broach, secured, color-coded blue index button. Slow compression renewable cartridge that closes with water pressure, with square tapered broach feature to help facilitate handle removal. 1/2" NPT female inlet and 1/2" NPT female outlet. This product is tested and certified to industry standards: ASME A112.18.1 and CSA B125.
h3. Product Type
Concealed In-Wall Straight Valve
h3. Features & Specifications
* 1/2" NPT Female Thread Outlet
* 3" Metal Cross Handle with Secured Blue Service Buttons
* Slow Compression Operating Cartridge
* 1/2" NPT Female Thread Inlet
h3. Performance Specification
* Rating Operating Pressure: 20-125 PSI
* Rated Operating Temperature: 40-140°F
h3. Warranty
* Lifetime Limited Faucet Warranty
* 5-Year Limited Cartridge Warranty
* 1-Year Limited Finish Warranty
h3. Compliant To
* ASME A112.18.1M
* CSA B125.1
