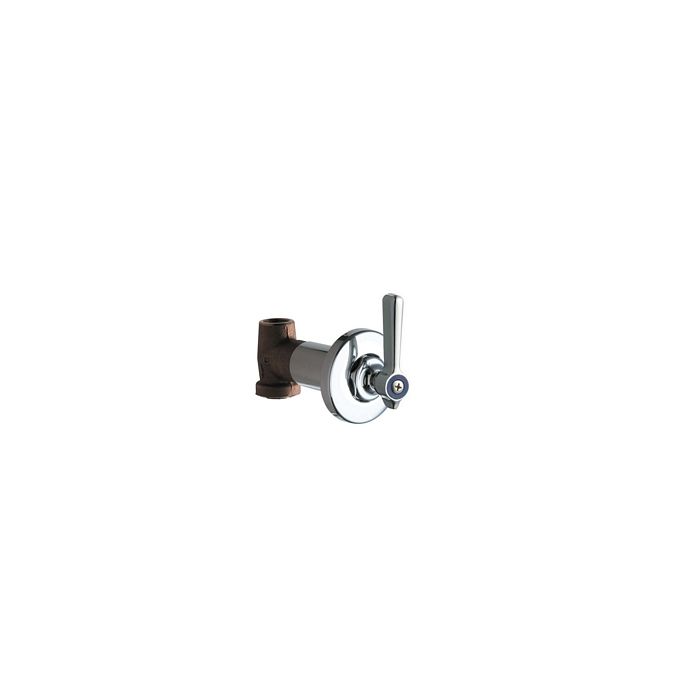

Chicago 770-369COLDABCP Cold Water Concealed Straight Valve
calcActive())">
Chicago Faucets No. 770-369COLDABCP polished chrome plated solid brass construction. 2 3/8" metal lever handle(s) with eight point tapered broach and secured blue button. Slow compression rebuildable cartridge, opens and closes 360° for fine adjustment, closes with water pressure, features square tapered stem. Integral inlet shank(s) contains standard 1/2" NPT female thread inlet. Mounting hardware included. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1M, CSA B125.1, and Certified to NSF/ANSI 61, Section 9 by CSA
h3. Product Type
Remote Valves Mounted Cold Water Concealed Straight Valve
h3. Features & Specifications
* Concealed Straight Valve
* 2 3/8" Lever Handle
* Slow Compression Operating Cartridge
* 1/2" NPT Female Thread Inlet
* 1/2" NPT Female Thread Outlet
h3. Performance Specification
* Rating Operating Pressure: 20-125 PSI
* Rated Operating Temperature: 40-140ºF
h3. Warranty
* Lifetime Limited Faucet Warranty
* 5-Year Limited Cartridge Warranty
* 1-Year Limited Finish Warranty
h3. Codes & Standards
* ASME A112.18.1
* CSA B125.1
* Certified to NSF/ANSI 61, Section 9 by CSA
* ADA ANSI/ICC A117.1
In stock
- SKU
- 161318
$171.56
Description / Chicago 770-369COLDABCP Cold Water Concealed Straight Valve
Chicago Faucets No. 770-369COLDABCP polished chrome plated solid brass construction. 2 3/8" metal lever handle(s) with eight point tapered broach and secured blue button. Slow compression rebuildable cartridge, opens and closes 360° for fine adjustment, closes with water pressure, features square tapered stem. Integral inlet shank(s) contains standard 1/2" NPT female thread inlet. Mounting hardware included. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1M, CSA B125.1, and Certified to NSF/ANSI 61, Section 9 by CSA
h3. Product Type
Remote Valves Mounted Cold Water Concealed Straight Valve
h3. Features & Specifications
* Concealed Straight Valve
* 2 3/8" Lever Handle
* Slow Compression Operating Cartridge
* 1/2" NPT Female Thread Inlet
* 1/2" NPT Female Thread Outlet
h3. Performance Specification
* Rating Operating Pressure: 20-125 PSI
* Rated Operating Temperature: 40-140ºF
h3. Warranty
* Lifetime Limited Faucet Warranty
* 5-Year Limited Cartridge Warranty
* 1-Year Limited Finish Warranty
h3. Codes & Standards
* ASME A112.18.1
* CSA B125.1
* Certified to NSF/ANSI 61, Section 9 by CSA
* ADA ANSI/ICC A117.1
