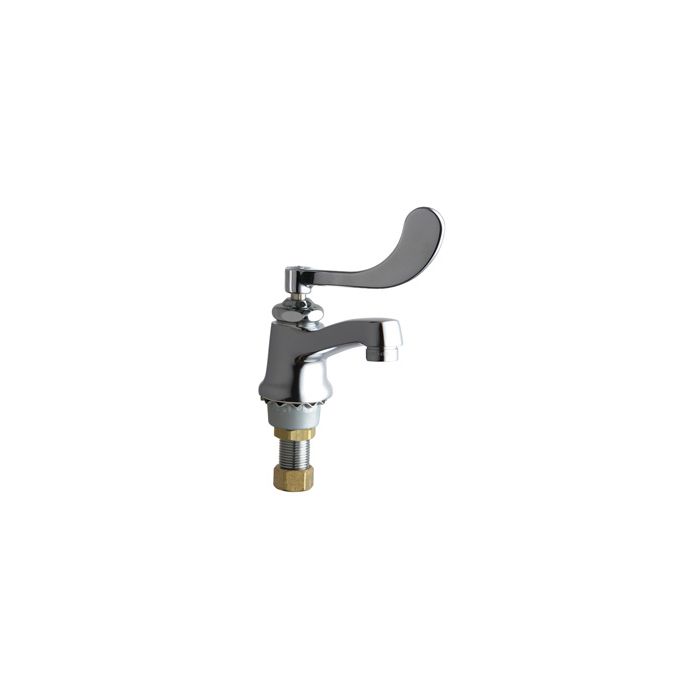

Chicago 700-317COLDABCP Single Supply Cold Water Sink Faucet

Chicago Faucets No. 700-317COLDABCP polished chrome plated solid brass construction. 3 3/8" center to center integral cast brass spout. 2.2 GPM (8.3 L/min) pressure compensating Softflo aerator. 4" metal wristblade handle(s) with sixteen point tapered broach and secured blue button. Quaturn™ rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square tapered stem. Integral inlet shank(s) contains standard 1/2" NPSM supply inlet with coupling nut for 3/8" or 1/2" flexible riser. 3 3/8" center to center integral cast brass spout. Mounting hardware included. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1M, CSA B125.1, and Certified to NSF/ANSI 61, Section 9 by CSA. h3. Product Type Deck Mounted Single Supply Cold Water Sink Faucet h3. Features & Specifications * Single Hole * 2.2 GPM (8.3 L/min) Aerator * 4" Wristblade Handle * Quaturn Compression Operating Cartridge * 1/2" NPSM Supply Inlet with Coupling Nut for 3/8" or 1/2" Flexible Riser * 3 3/8" Center to Center Integral Cast Brass Spout h3. Performance Specification * Rating Operating Pressure: 20-125 PSI * Rated Operating Temperature: 40-140ºF h3. Warranty * Lifetime Limited Faucet Warranty * 5-Year Limited Cartridge Warranty * 1-Year Limited Finish Warranty h3. Codes & Standards * ASME A112.18.1 * CSA B125.1 * Certified to NSF/ANSI 61, Section 9 by CSA * ADA ANSI/ICC A117.1
