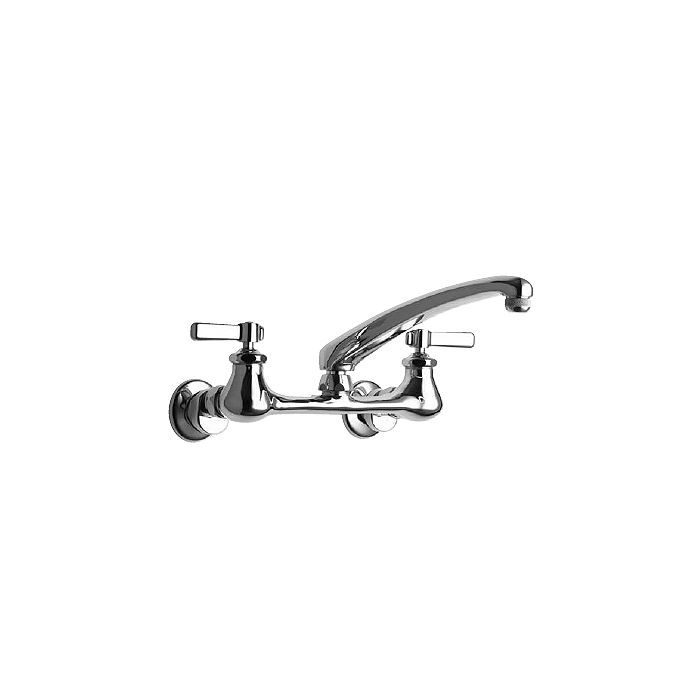

Chicago 540-LDL8E1CP Faucet (Discontinued)

Chicago Faucets No. 540-LDL8E1CP polished chrome plated solid brass construction. 8" center to center swing L type cast brass spout. Full flow quixtop with single screen design outlet. 2 3/8" metal lever handle(s) with eight point tapered broach and secured blue and red buttons. Quaturn™ rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square tapered stem. 3/8" offset adjustable supply arms with 1/2" NPT female thread inlet. Mounting hardware included. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1M, CSA B125.1, and Certified to NSF/ANSI 61, Section 9 by CSA. h3. Product Type Wall Mounted Hot and Cold Water Sink Faucet h3. Features & Specifications • 8" Body, Adjustable Arms 7 1/4" - 8 3/4" • 8" Swing L Type Cast Brass Spout • Full Flow Outlet • 2 3/8" Lever Handle • Quaturn Compression Operating Cartridge • Offset 3/8" Offset Inlet Supply Arm • 3/8" Offset Adjustable Supply Arms with 1/2" NPT Female Thread Inlet h3. Performance Specification • Rating Operating Pressure: 20-125 PSI • Rated Operating Temperature: 40-140ºF h3. Warranty • Lifetime Limited Faucet Warranty • 5-Year Limited Cartridge Warranty • 1-Year Limited Finish Warranty h3. Codes & Standards • ASME A112.18.1M • CSA B125.1 • Certified to NSF/ANSI 61, Section 9 by CSA • ADA ANSI/ICC A117.1
