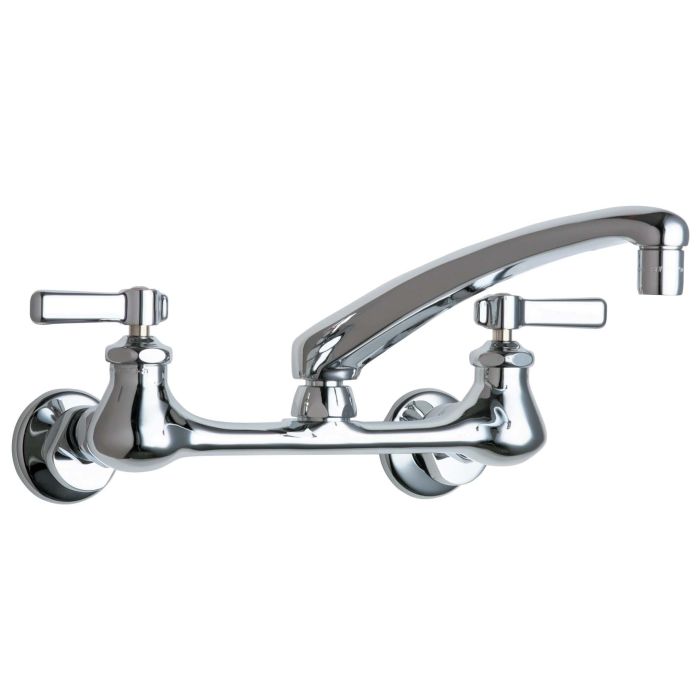

Chicago 540-LDL8CP Wall Mount Faucet (Discontinued)
h3. Product Type
Sink Faucet
h3. Features & Specifications
* 8" C-C Cast Brass Swing Spout
* 2.2 GPM (8.3 L/min) Pressure Compensating Softflo® Aerator
* 2 3/8" Metal Lever Handles with Secured Red and Blue Service Buttons
* Quaturn™ Operating Cartridges
* 3/8" Offset Adjustable Supply Arms with 1/2" NPT Female Thread Inlet
h3. Performance Specification
* Rating Operating Pressure: 20-125 PSI
* Rated Operating Temperature: 40-140°F
h3. Warranty
* Lifetime Limited Faucet Warranty
* 5-Year Limited Cartridge Warranty
* 1-Year Limited Finish Warranty
h3. Compliant To
* ASME A112.18.1M
* CSA B125.1
* NSF 61, Section 9
* ADA ANSI/ICC A117.1
Out of stock
- SKU
- 100368
$0.00
Description / Chicago 540-LDL8CP Wall Mount Faucet (Discontinued)
h3. Product Type
Sink Faucet
h3. Features & Specifications
* 8" C-C Cast Brass Swing Spout
* 2.2 GPM (8.3 L/min) Pressure Compensating Softflo® Aerator
* 2 3/8" Metal Lever Handles with Secured Red and Blue Service Buttons
* Quaturn™ Operating Cartridges
* 3/8" Offset Adjustable Supply Arms with 1/2" NPT Female Thread Inlet
h3. Performance Specification
* Rating Operating Pressure: 20-125 PSI
* Rated Operating Temperature: 40-140°F
h3. Warranty
* Lifetime Limited Faucet Warranty
* 5-Year Limited Cartridge Warranty
* 1-Year Limited Finish Warranty
h3. Compliant To
* ASME A112.18.1M
* CSA B125.1
* NSF 61, Section 9
* ADA ANSI/ICC A117.1
More Information
| Manufacturer | Chicago |
|---|---|
| Model # | 540-LDL8CP |
| Mounting Holes | 2 |
| Aerator GPM Flow Rate | 2.2 GPM |
| Faucet Spout Reach | 6.25" |
| Cartridge Type | Quaturn Compression |
| Height (inches) | 4.75 |
